Exhaust Gas Recirculation (EGR) System Module Tube: Notes

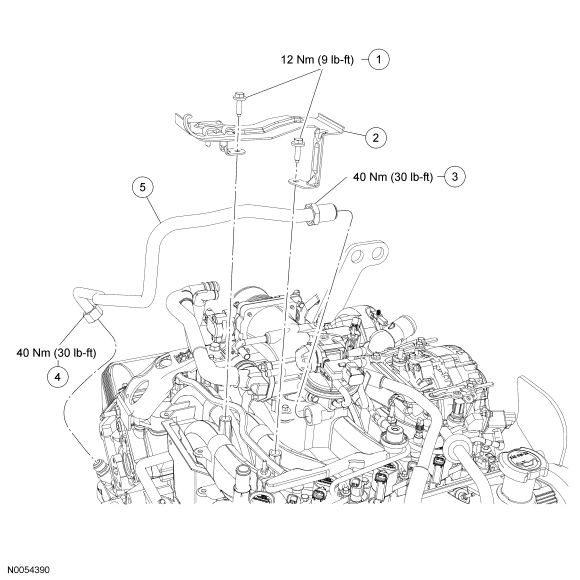

Fig 1: Exploded View Of Exhaust Gas Recirculation EGR System Module Tube With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N807309S	Intake manifold shield retaining bolts
2	9F460A	Intake manifold shield
3	-	Exhaust gas recirculation (EGR) system tube fitting (part of 9D477)
4	-	EGR system tube nut (part of 9D477)
5	9D477	EGR system tube
