Seat Backrest - Front: Notes

NOTE: Driver seat shown, passenger seat similar.

NOTE: Front 50 percent seat shown, 40 percent seat similar.

NOTE: The torque specification for power recliner-to-seat track bolts is shown. For manual recliner-to-seat track bolts, tighten to 55 Nm (41 lb-ft). For additional information, refer to the appropriate procedure steps.

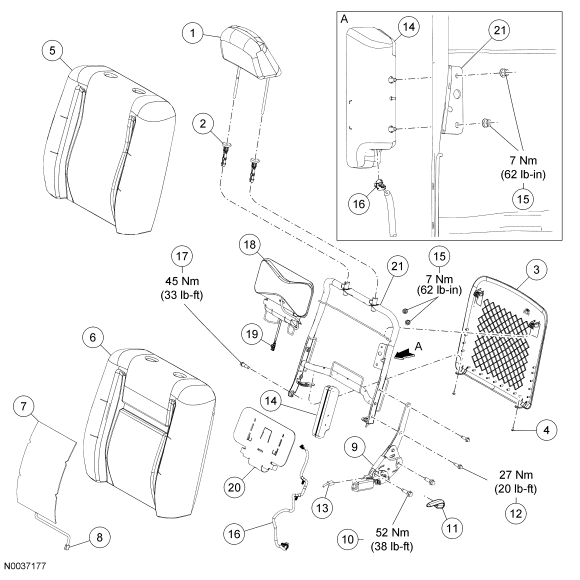

Fig 1: Exploded View Of Front Seat Backrest With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	611A08	Head restraint assembly
2	610A18	Head restraint guide (2 required)
3	60770	Seat back trim panel (Police only)
4	-	Seat back trim panel screw (2 required, Police only)
5	64416	Backrest trim cover
6	64810	Backrest foam pad
7	-	Backrest heater pad (if equipped, part of 64810)
8	-	Electrical connector (if equipped, part of 64810)
9	62648/62649	Recliner assembly (power shown, if equipped)
10	N803463	Recliner-to-seat track bolt (2 required)
11	61198	Recliner handle
12	N803463	Recliner-to-backrest frame bolt (2 required)
13	-	Electrical connector (if equipped)
14	611D10	Side air bag module (if equipped)
15	N620480	Side air bag module nuts (2 required, if equipped)
16	14716	Side air bag module wiring harness (if equipped)
17	N808123	Pivot bolt
18	65500	Lumbar assembly, power (if equipped)
19	-	Electrical connector (if equipped)
20	-	Lumbar support
21	61018	Backrest frame
