Engine Mount - RH
›
Notes
Engine Mount - RH: Notes
Special Tools
Illustration
Tool Name
Tool Number
3-Bar Engine Support Kit
303-F072
Lifting Brackets, Engine
303-050 (T70P-6000)

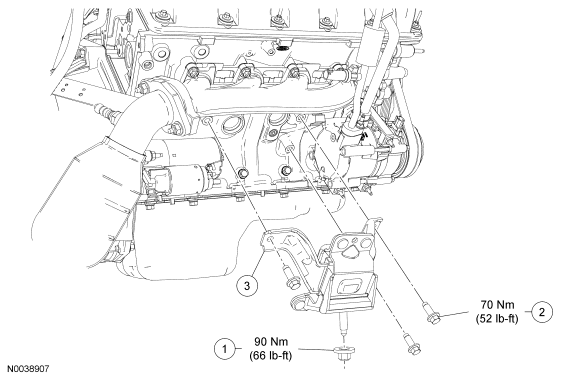

Fig 1: Exploded View Of RH Engine Mount With Torque Specifications
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
W707492
RH engine mount nut
2
W710646
RH engine mount bolt (3 required)
3
6038
RH engine mount
