Oil Level Indicator and Tube: Notes

Material

Item	Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent	WSS-M2C930-A

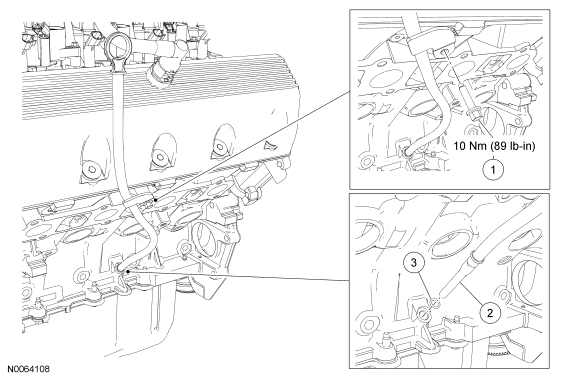

Fig 1: Exploded View Of Oil Level Indicator and Tube With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N806155	Oil level indicator tube bolt
2	6750	Oil level indicator and tube
3	-	Oil level indicator tube O-ring seal
