Forward Clutch Cylinder: Notes

Special Tools

Illustration	Tool Name	Tool Number
	Dial Indicator Gauge with Holding Fixture	100-002 (TOOL-4201-C) or equivalent
	Compressor, Clutch Spring	307-096 (T81P-70235-A)
	Protector, Piston Seal	307-020 (T68P-7D158-A2)
	Protector, Piston Seal	307-078 (T80L-77140-A)

Material

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

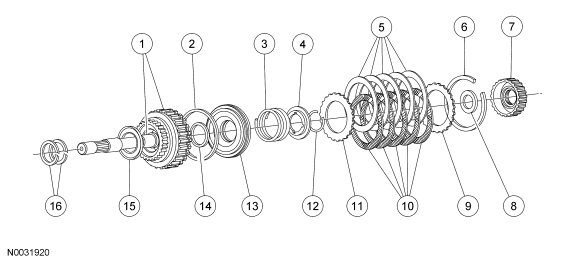

Fig 1: Exploded View Of Forward Clutch Cylinder

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	7F207	Forward clutch cylinder and shaft
2	7A548	Forward clutch piston outer seal
3	7A480	Forward clutch piston return spring
4	7A527	Forward clutch retainer return spring
5	7B442	Forward clutch external spline plates (steel)
6	7D483	Retaining snap ring
7	7B067	Forward clutch hub
8	7F231	No. 3 forward clutch hub front bearing
9	7B066	Forward clutch pressure plate
10	7B164	Forward clutch internal spline plates (friction)
11	7E085	Forward clutch pressure spring
12	388099-S	Retaining snap ring
13	7A262	Forward clutch piston
14	7C099	Forward clutch piston inner seal
15	7A166	No. 2 forward clutch bearing
16	7B497	Input shaft seals
