Pump and Intermediate Clutch Piston: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Installer, Front Pump Fluid Seal | 307-014 (T63L-77837-A) |

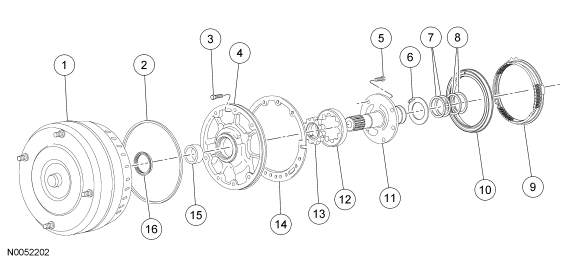

| Item | Part Number | Description |
|---|---|---|
| 1 | 7902 | Torque converter |
| 2 | 7A248 | Front pump O-ring |
| 3 | N605789-S101 | Bolt |
| 4 | - | Pump body assembly |
| 5 | N605787-S1000 | Front pump support bolt |
| 6 | 7D014 | No. 1 pump support thrust washer |
| 7 | 7D020 | Reverse clutch cylinder seals |
| 8 | 7D019 | Forward clutch cylinder seals |
| 9 | 7F222 | Intermediate clutch piston return spring |
| 10 | 7E005 | Intermediate clutch piston |
| 11 | 7A108 | Pump support |
| 12 | - | Pump outer gerotor gear |
| 13 | - | Pump inner gerotor gear |
| 14 | 7A136 | Pump gasket |
| 15 | - | Pump bushing |
| 16 | 7A248 | Pump inner seal |
