Digital Transmission Range (TR) Sensor: Notes

Special Tools

Illustration	Tool Name	Tool Number
	Alignment Gauge, TR Sensor	307-351 (T97L-70010-A)

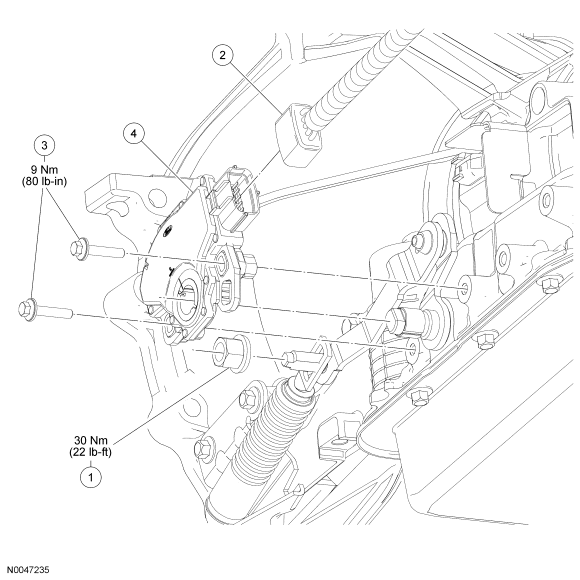

Fig 1: Exploded View Of Digital Transmission Range TR Sensor With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N808356	Selector lever cable nut
2	-	Transmission range (TR) sensor electrical connector
3	N806933	TR sensor bolts
4	7F293	TR sensor
