Transmission Support Crossmember: Notes

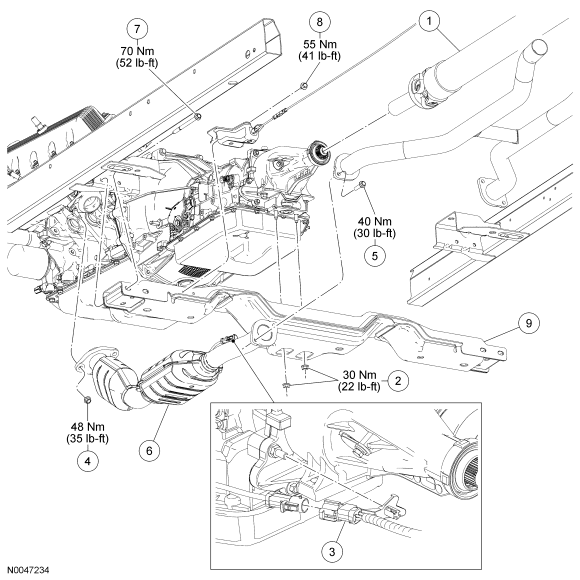

Fig 1: Exploded View Of Transmission Support Crossmember With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	4W73	Driveshaft
2	W520514	Transmission insulator nuts
3	14A464	HO2S/Catalyst monitor electrical connectors (4 required)
4	W705443	Exhaust flange nuts (4 required)
5	56142	Catalytic converter-to-exhaust pipe bolts (4 required)
6	5E212	LH/RH catalytic converter
7	W709208	Crossmember bolts (4 required)
8	W709747	Parking brake cable bracket bolts (2 required)
9	5027	Crossmember
