Fuel Injector Control Module Connector

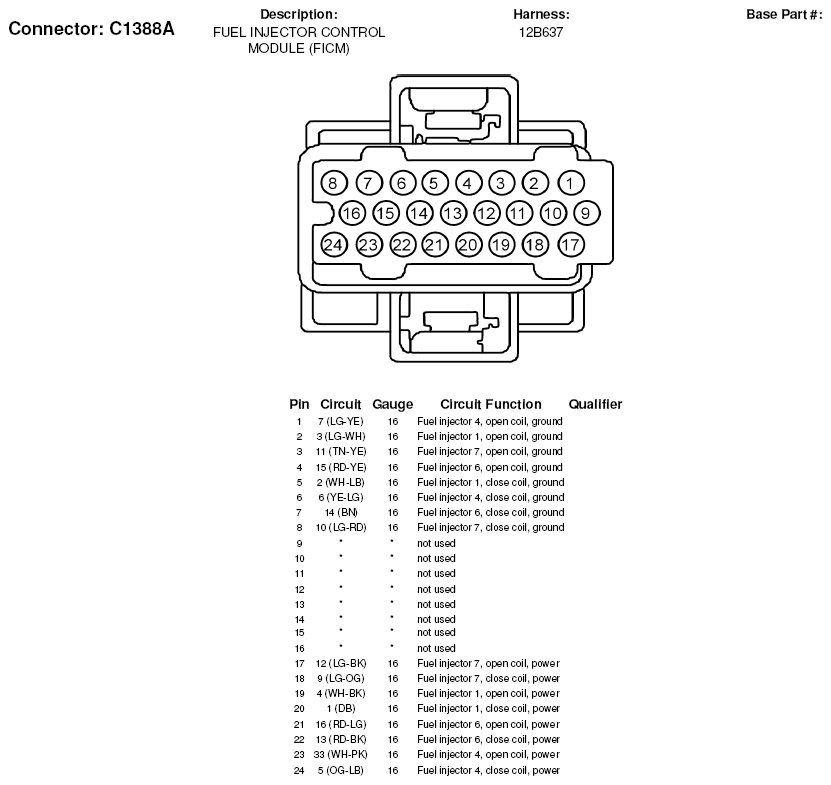

Fig 1: Fuel Injector Control Module Connector End View (C1388A)
G05181361Courtesy of FORD MOTOR CO.

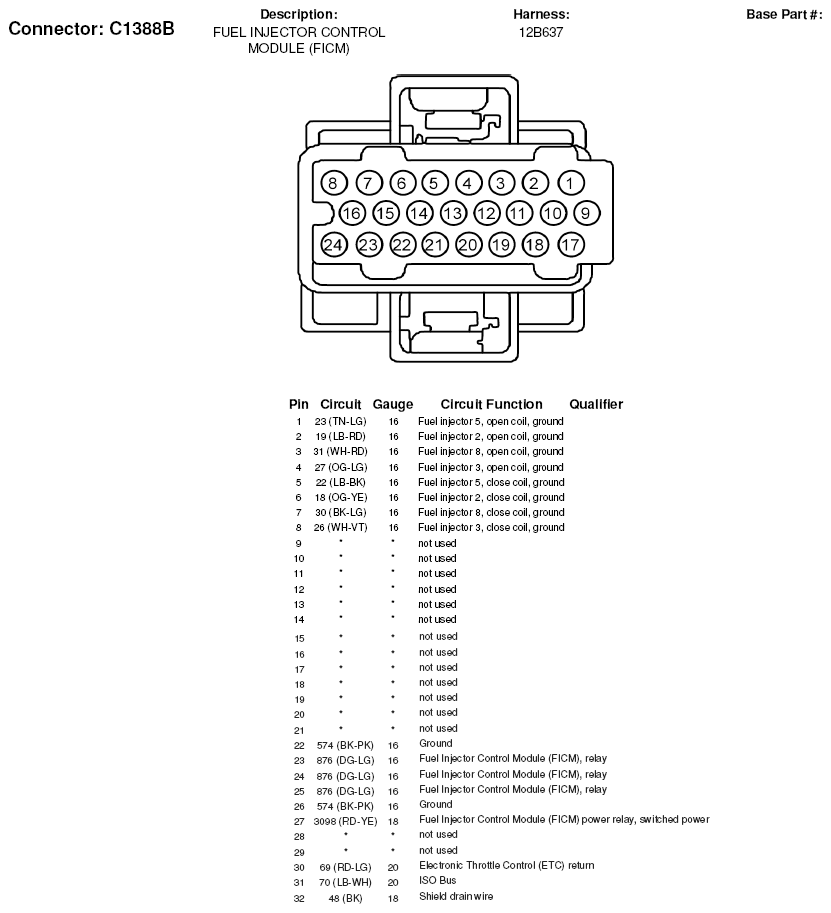

Fig 2: Fuel Injector Control Module Connector End View (C1388B)
G05181362Courtesy of FORD MOTOR CO.

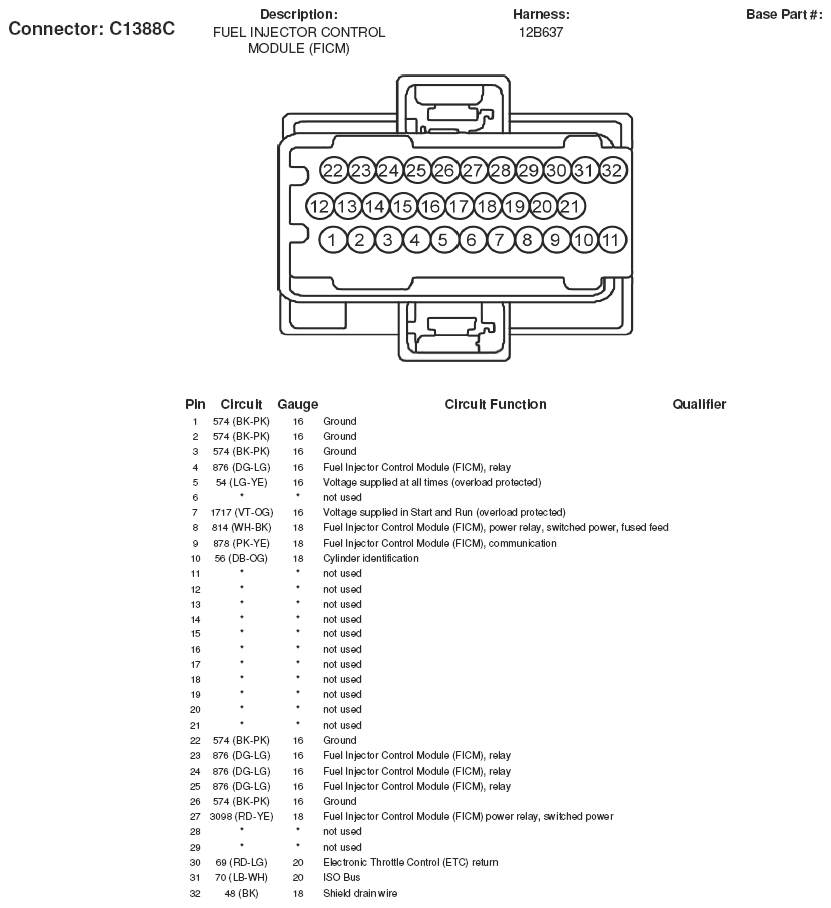

Fig 3: Fuel Injector Control Module Connector End View (C1388C)
G05225751Courtesy of FORD MOTOR CO.
