Glow Plug Control Module Connector

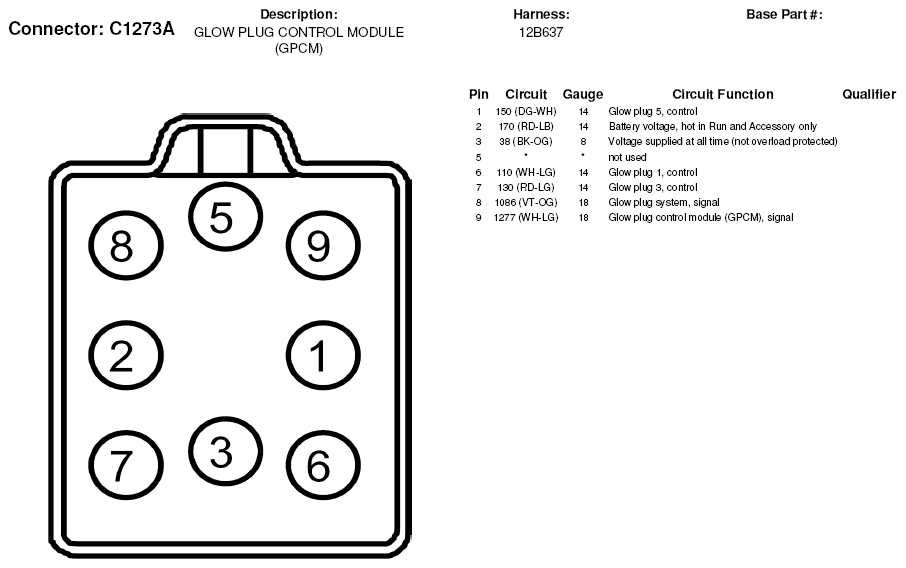

Fig 1: Glow Plug Control Module Connector End View (C1273A)
G05181343Courtesy of FORD MOTOR CO.

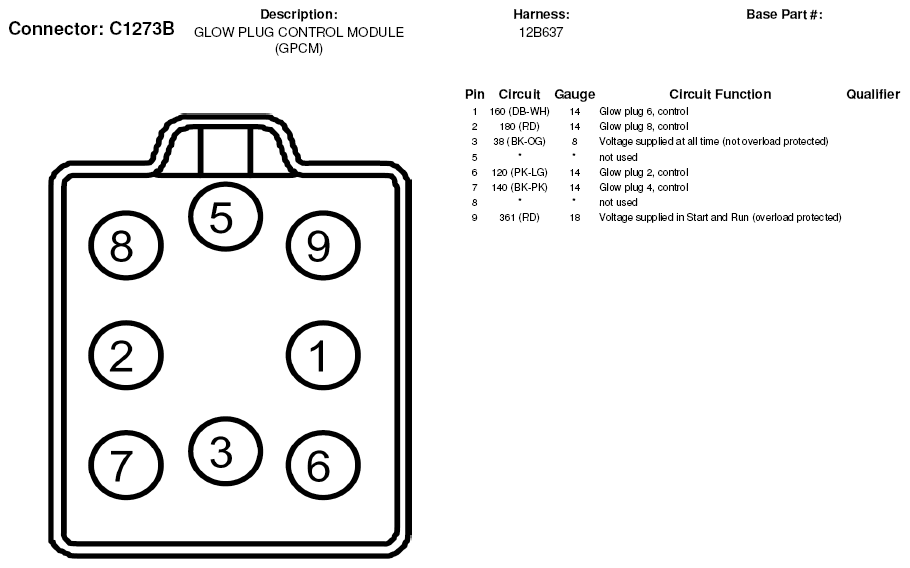

Fig 2: Glow Plug Control Module Connector End View (C1273B)
G05181344Courtesy of FORD MOTOR CO.
