Daytime Running Lamps Module Connector

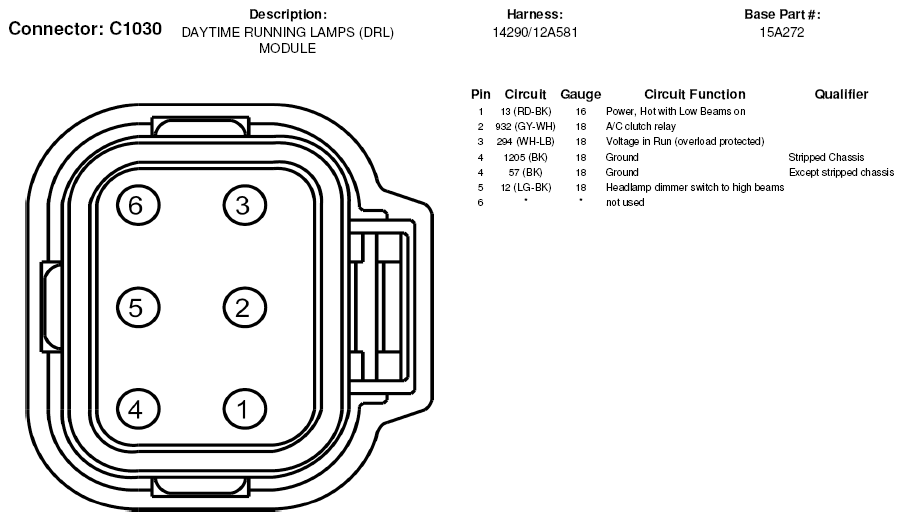

Fig 1: Daytime Running Lamps Module Connector End View (C1030)
G05181298Courtesy of FORD MOTOR CO.
