Engine Oil Temperature Sensor Connector

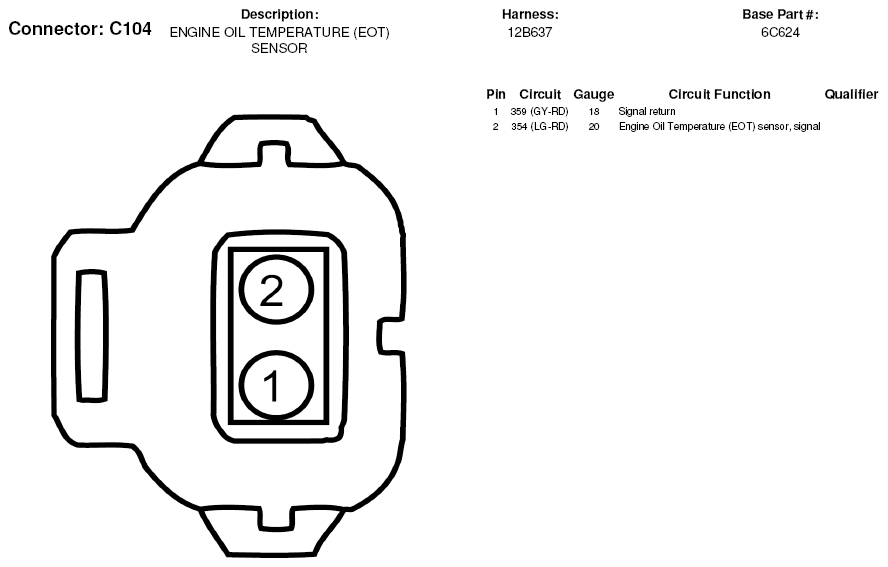

Fig 1: Engine Oil Temperature Sensor Connector End View (C104)
G05181123Courtesy of FORD MOTOR CO.
