Identifying Connector
Identifying Connector

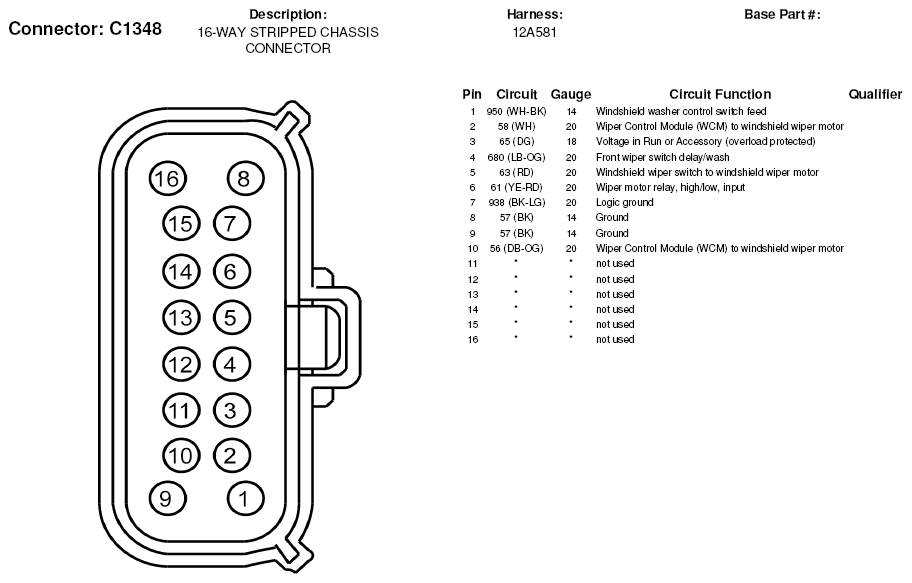

Fig 1: Identifying Connector C1348 (16-Way Stripped Chassis Connector)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
