Injection Control Pressure Sensor Connector
Injection Control Pressure Sensor Connector

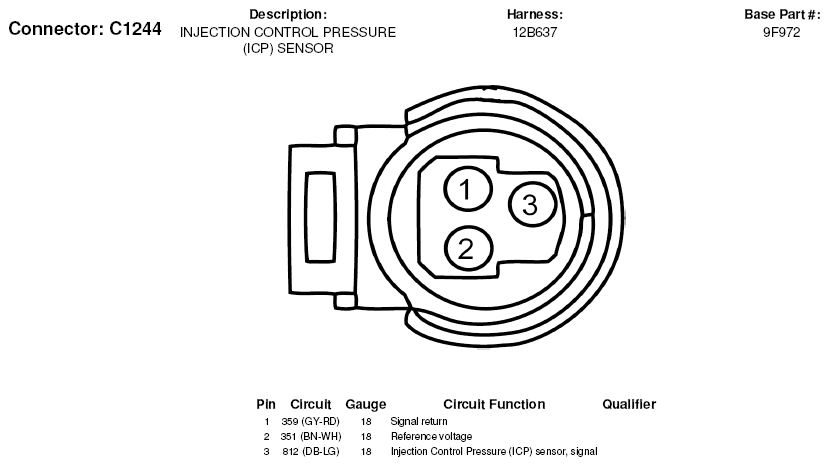

Fig 1: Injection Control Pressure Sensor Connector End View (C1244)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
