Master Window/Door Lock/Unlock Switch Connector
Master Window/Door Lock/Unlock Switch Connector

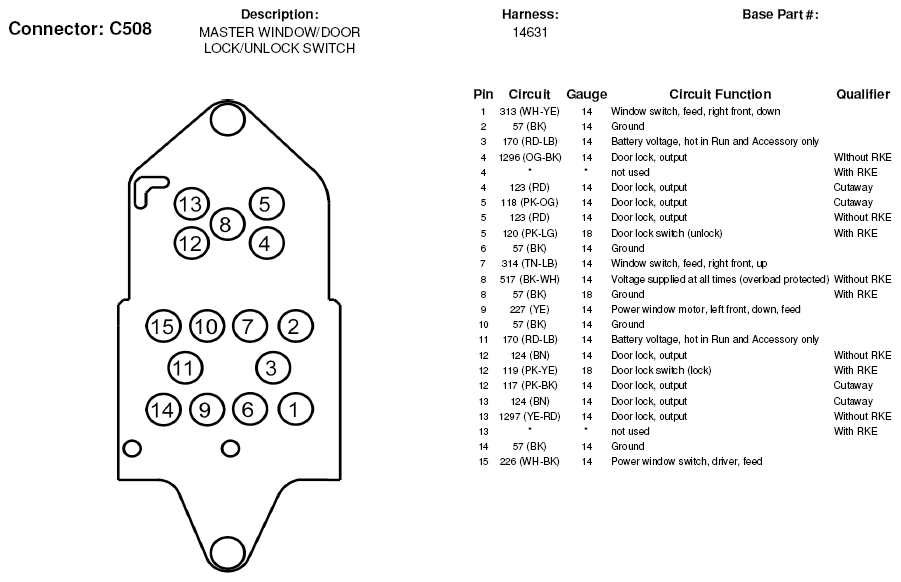

Fig 1: Master Window/Door Lock/Unlock Switch Connector End View (C508)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
