Multifunction Switch Connectors

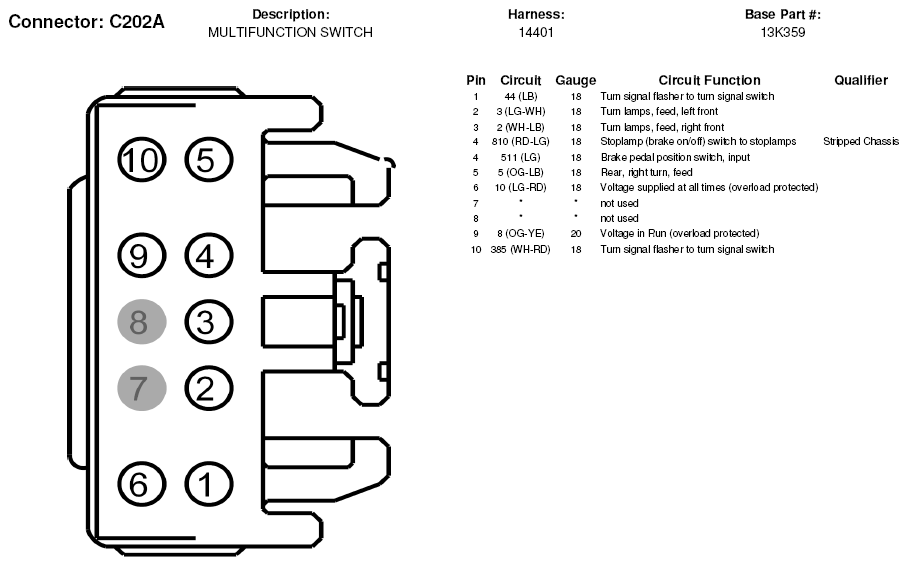

Fig 1: Multifunction Switch Connector End View (C202A)

G05181188

Courtesy of FORD MOTOR CO.

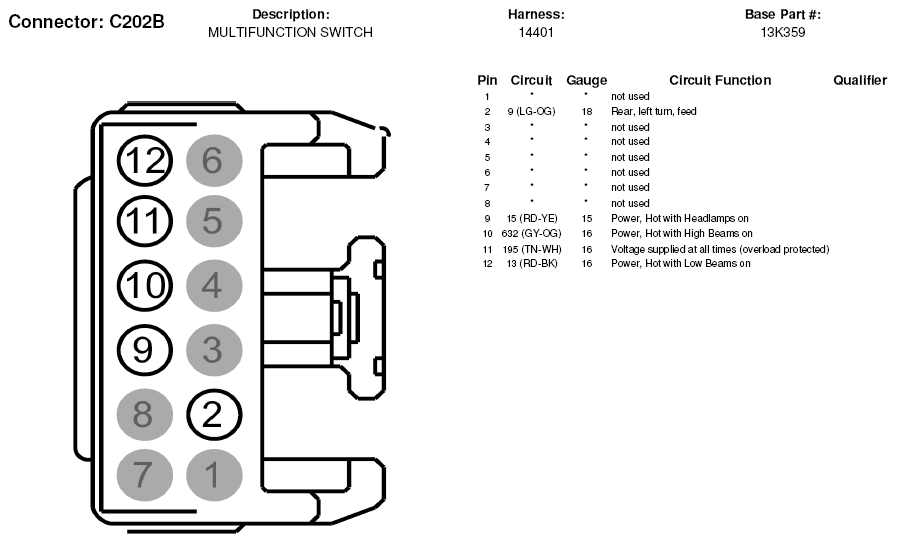

Fig 2: Multifunction Switch Connector End View (C202B)

G05181189

Courtesy of FORD MOTOR CO.

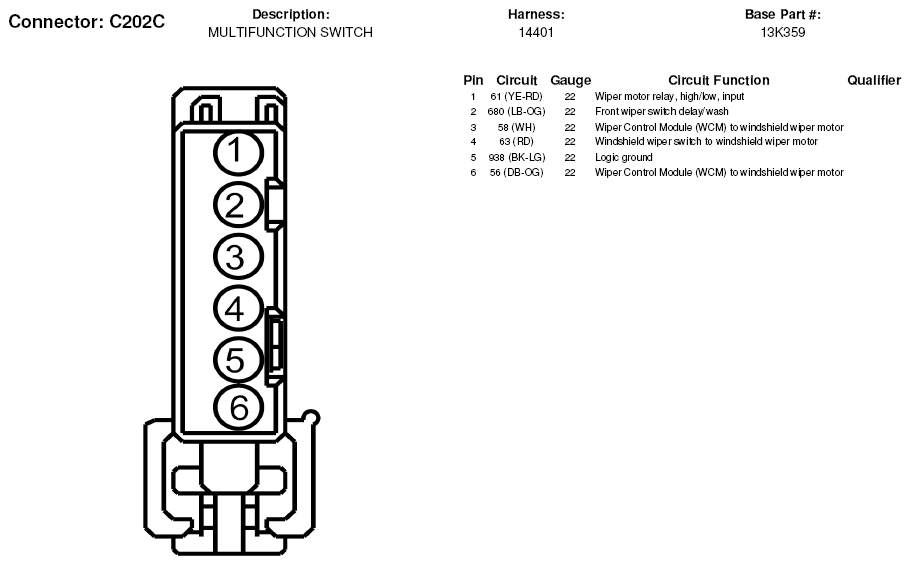

Fig 3: Multifunction Switch Connector End View (C202C)

G05181190

Courtesy of FORD MOTOR CO.
