Parking Aid Module Connector
Parking Aid Module Connector

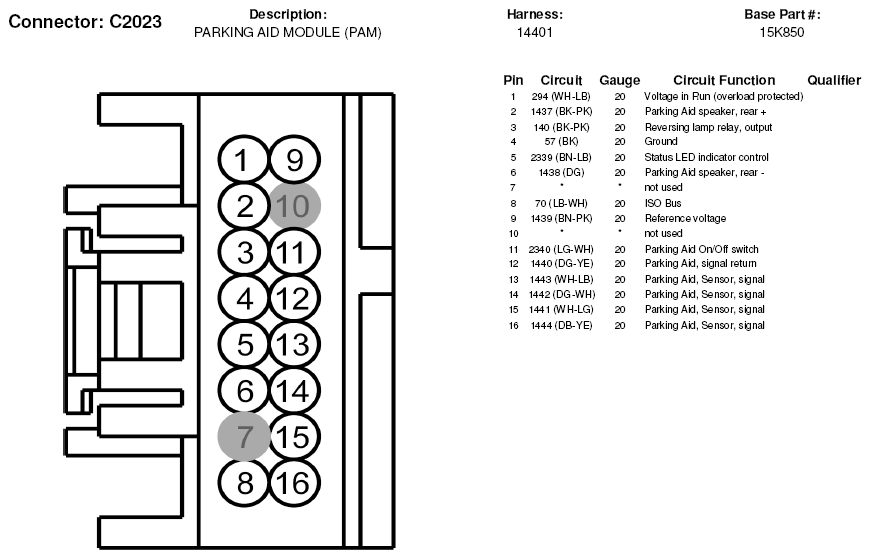

Fig 1: Parking Aid Module Connector End View (C2023)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
