Passenger Airbag Module Connector
Passenger Airbag Module Connector

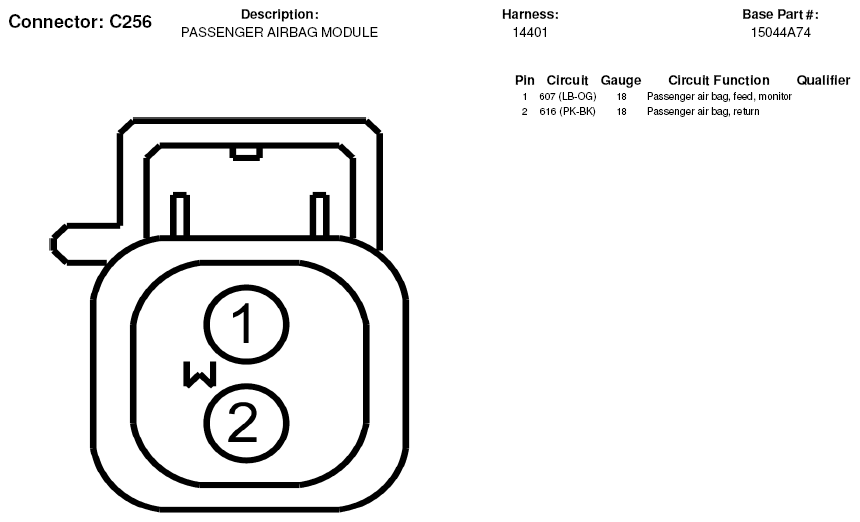

Fig 1: Passenger Airbag Module Connector End View (C256)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
