Speed Sensor Assembly Connector

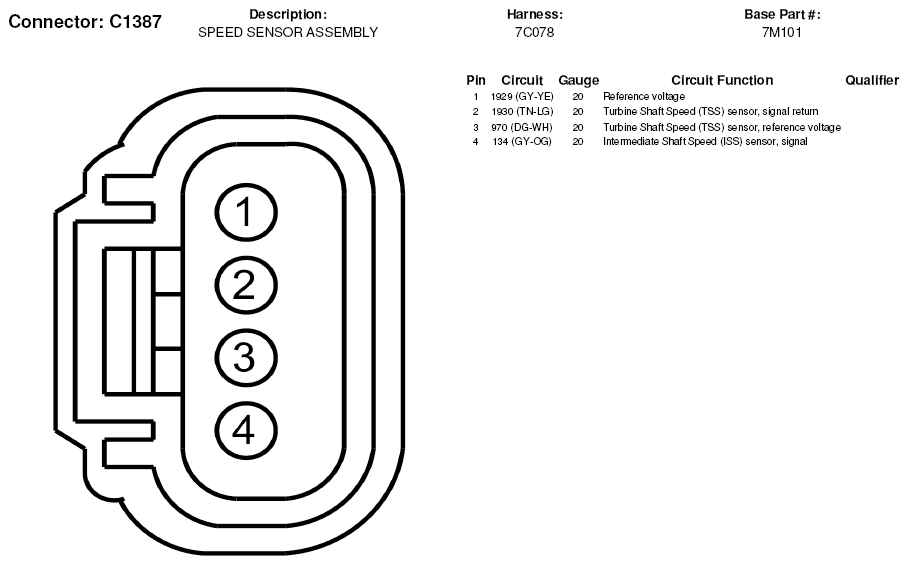

Fig 1: Speed Sensor Assembly Connector End View (C1387)
G05181360Courtesy of FORD MOTOR CO.
