Steering Wheel
›
Notes
Steering Wheel: Notes
Special Tools
Illustration
Tool Name
Tool Number
Remover, Differential Bearing
205-116 (T77F-4220-B1)

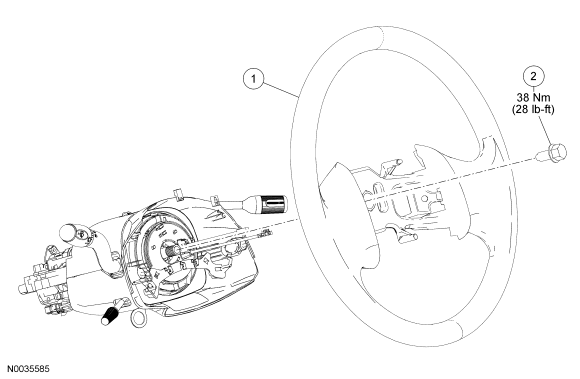

Fig 1: Exploded View Of Steering Wheel With Torque Specifications
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
3600
Steering wheel
2
N804385
Bolt
