Window Control Switch: Notes

NOTE: LH side shown, RH side similar.

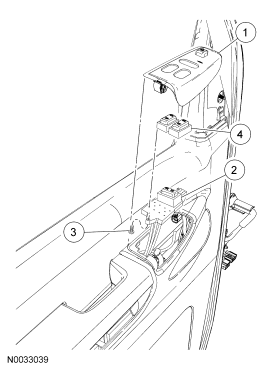

Fig 1: Exploded View Of Window Control Switch

GF0011384

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14524	Window control switch bezel
2	14630/14631	Electrical connector
3	-	Screw (2 required)
4	14529	Window control switch
