Powertrain Control Module (PCM): Notes

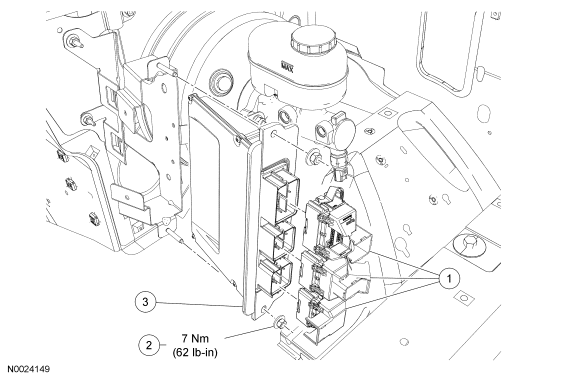

Fig 1: Exploded View Of Powertrain Control Module PCM With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Powertrain control module (PCM) electrical connectors (3 required) (part of 12B637 and 12A581)
2	N621906	PCM nut (2 required)
3	12A651	PCM
