Fuel Charging And Controls - 6.8L
›
Removal And Installation
›
Fuel Pump Driver Module (FPDM)
›
Notes
Fuel Pump Driver Module (FPDM): Notes

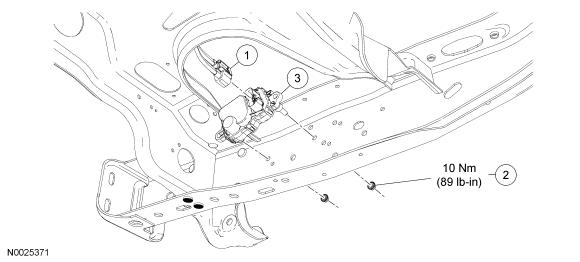

Fig 1: Exploded View Of Fuel Pump Driver Module FPDM With Torque Specifications
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
-
Fuel pump driver module (FPDM) electrical connector (part of 14406)
2
W705448
FPDM nut (2 required)
3
9D372
FPDM
