Overhead Console Connectors

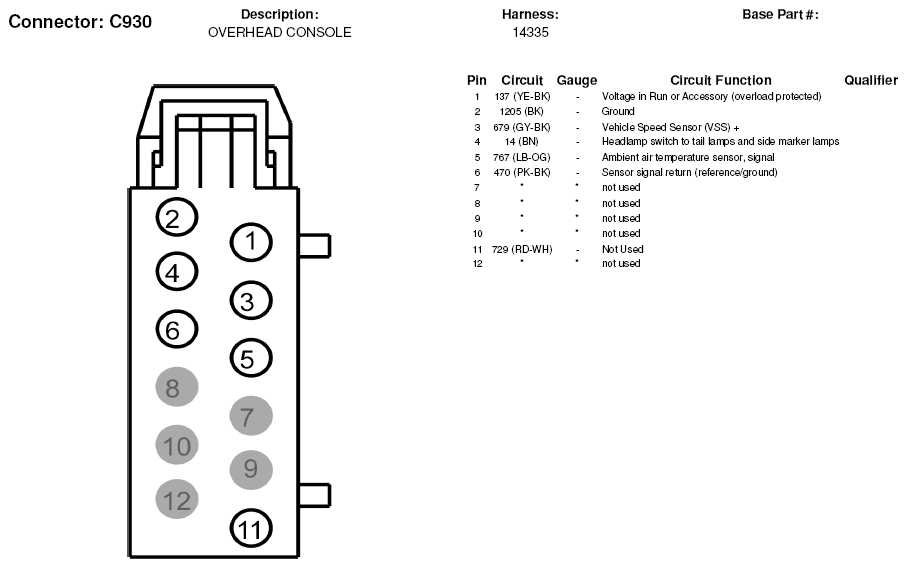

Fig 1: Overhead Console Connector End View (C930)
G05181289Courtesy of FORD MOTOR CO.
