Audio Control Module Connector

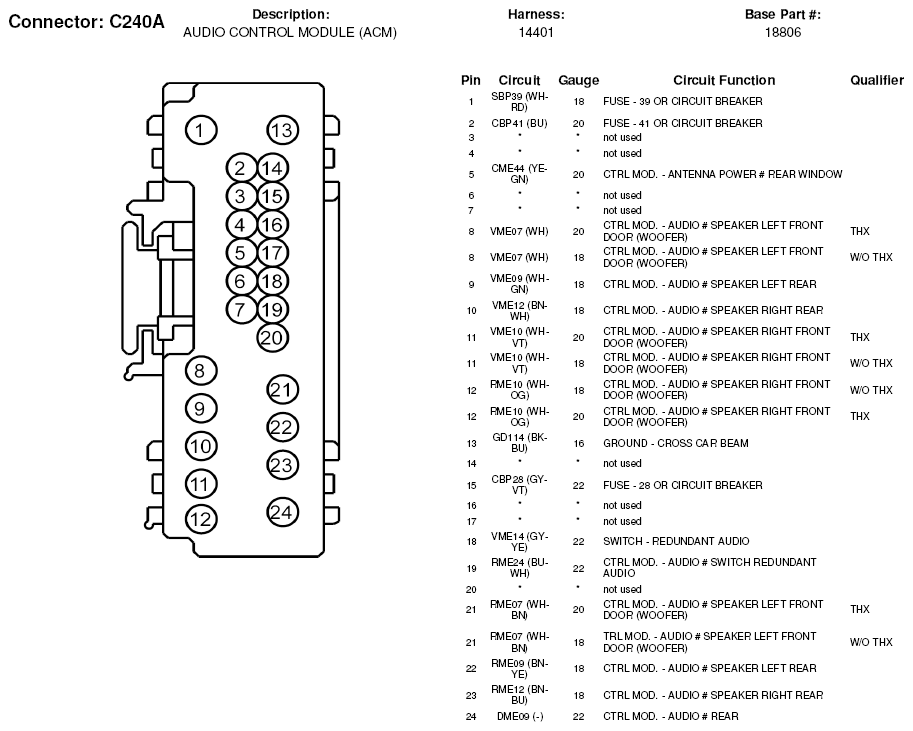

Fig 1: Audio Control Module Connector End View (C240A)

Courtesy of FORD MOTOR CO.

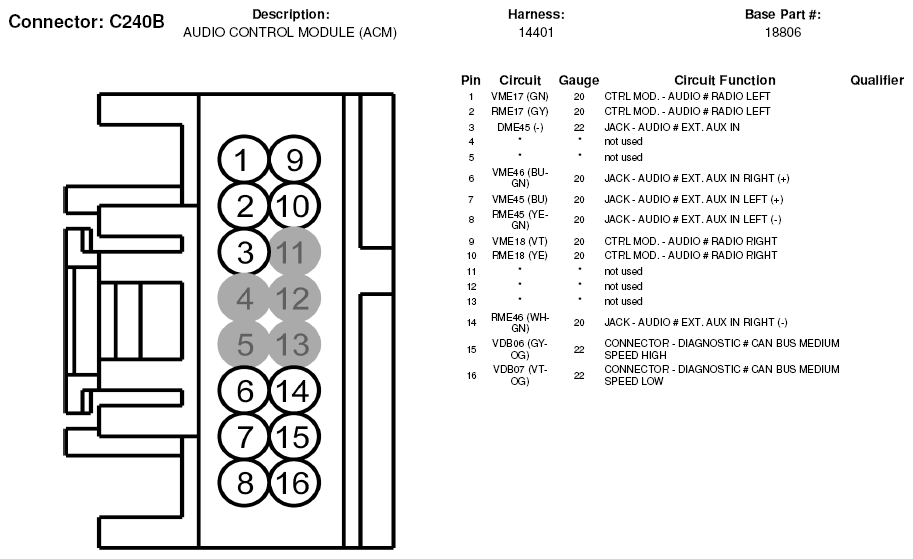

Fig 2: Audio Control Module Connector End View (C240B)

Courtesy of FORD MOTOR CO.

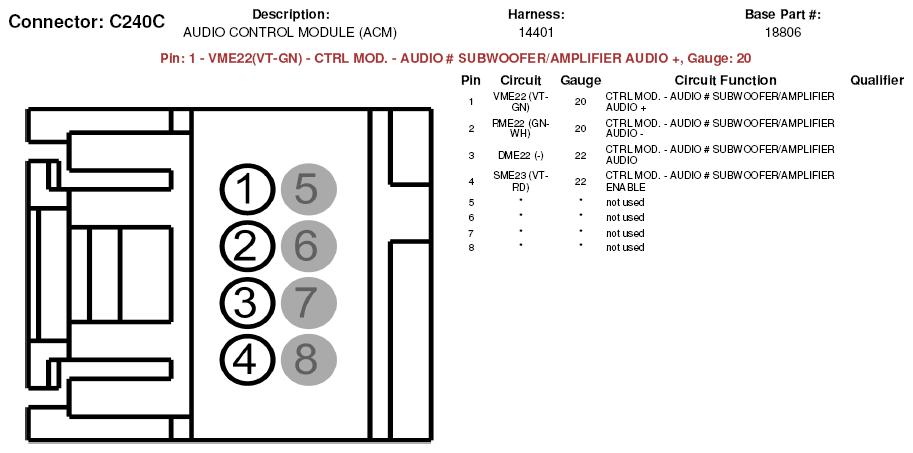

Fig 3: Audio Control Module Connector End View (C240C)

Courtesy of FORD MOTOR CO.
