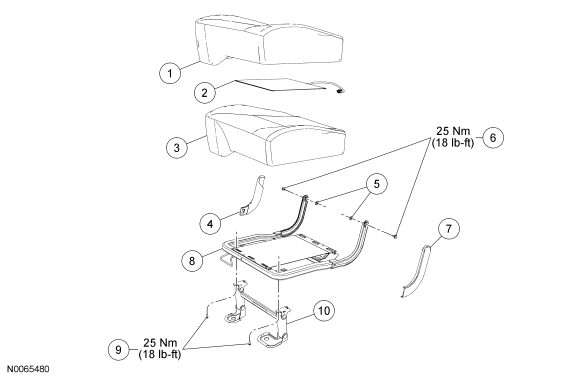

Seat - Exploded View, Rear
NOTE:
A new heater mat will come assembled on a new foam pad.
| Item | Part Number | Description |
|---|---|---|
| 1 | 63804 | Cushion trim cover |
| 2 | - | Cushion heater mat (if equipped) (part of 63840) |
| 3 | 63840 | Cushion foam pad |
| 4 | 666L76 | Outboard cushion frame pivot bracket cover |
| 5 | - | Wave washers |
| 6 | W712172 | Cushion frame pivot bracket bolts |
| 7 | 66L75 | Inboard cushion frame pivot bracket cover |
| 8 | 63160 | Cushion frame |
| 9 | N605892 | Kneeling assembly-to-cushion frame bolts |
| 10 | 605B10 | Kneeling assembly |
WARNING:
Never remove the recliner-to-backrest frame bolts or the recliner-to-floor anchor assembly bolts. If these bolts are removed, and a specially designed fixture is not used for reassembly, the recliner will bind and the seat back may fail in a crash. Failure to follow these instructions may result in serious personal injury to the vehicle occupant(s).
NOTE:
A new heater mat will come assembled on a new foam pad.

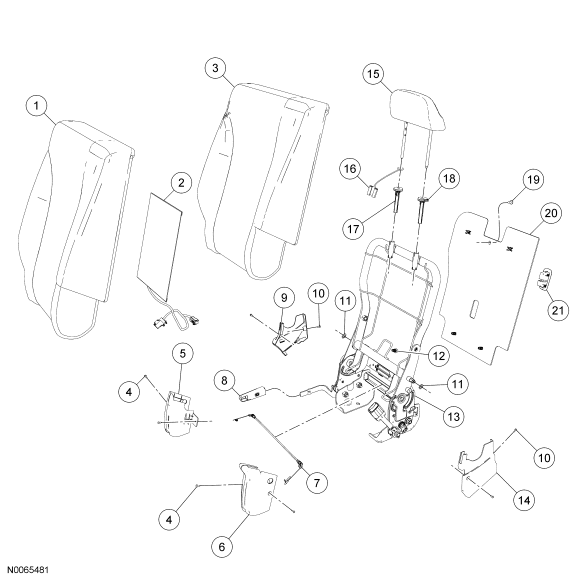

| Item | Part Number | Description |
|---|---|---|
| 1 | 66600 | Backrest trim cover |
| 2 | - | Backrest heater mat (if equipped) (part of 66800) |
| 3 | 66800 | Backrest foam pad |
| 4 | - | Screws (4 required) |
| 5 | 61348 | Outboard upper side shield |
| 6 | 61348 | Inboard upper side shield |
| 7 | 601L60 | Recliner cable |
| 8 | 62418 | Recliner handle cover |
| 9 | 61348 | Outboard lower side shield |
| 10 | - | Screws (4 required) |
| 11 | - | Wave washers (2 required) |
| 12 | - | Pin-type retainer |
| 13 | 613A38 | Backrest assembly |
| 14 | 61349 | Inboard lower side shield |
| 15 | 611A08 | Head restraint |
| 16 | - | Safety belt comfort guide |
| 17 | 610A16 | Head restraint guide (slave) |
| 18 | 610A16 | Head restraint guide (master) |
| 19 | - | Pin-type retainer |
| 20 | 60508 | Back panel |
| 21 | 666L76 | Child safety seat tether anchor bezel |
NOTE:
A new heater mat will come assembled on a new foam pad.
| Item | Part Number | Description |
|---|---|---|
| 1 | 63805 | Cushion trim cover |
| 2 | - | Cushion heater mat (if equipped) (part of 63841) |
| 3 | 63841 | Cushion foam pad |
| 4 | 666L76 | Inboard cushion frame pivot bracket cover |
| 5 | - | Wave washers |
| 6 | 666L75 | Outboard cushion frame pivot bracket cover |
| 7 | W712172 | Cushion frame pivot bracket bolts |
| 8 | 63161 | Cushion frame |
| 9 | N605892 | Kneeling assembly-to-cushion frame bolts |
| 10 | 605B11 | Kneeling assembly |
WARNING:
Never remove the recliner-to-backrest frame bolts or the recliner-to-floor anchor assembly bolts. If these bolts are removed, and a specially designed fixture is not used for reassembly, the recliner will bind and the seat back may fail in a crash. Failure to follow these instructions may result in serious personal injury to the vehicle occupant(s).
NOTE:
A new heater mat will come assembled on a new foam pad.

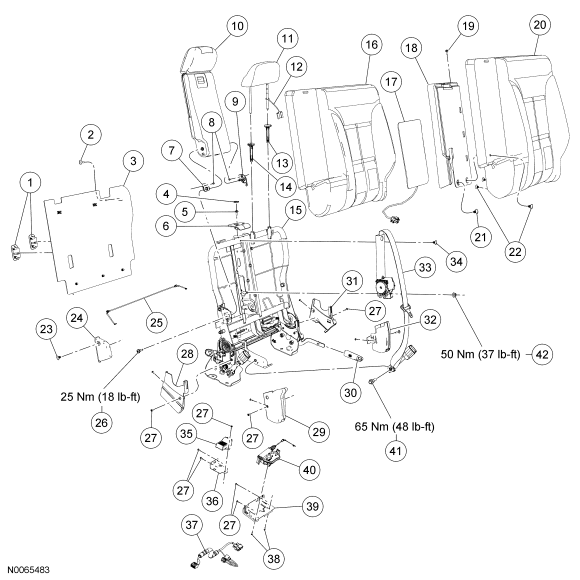

| Item | Part Number | Description |
|---|---|---|
| 1 | 666L76 | Child safety seat tether anchor bezels |
| 2 | - | Pin-type retainer |
| 3 | 60509 | Back panel |
| 4 | 237W10 | Safety belt bezel screw cover (part of 611A70) |
| 5 | - | Safety belt bezel screw |
| 6 | 611A70 | Safety belt bezel |
| 7 | 67336 | RH armrest detent |
| 8 | - | Armrest detent-to-backrest frame screws |
| 9 | 67336 | LH armrest detent |
| 10 | 67112 | Armrest |
| 11 | 611A08 | Head restraint |
| 12 | - | Safety belt comfort guide |
| 13 | 610A16 | Head restraint guide (master) |
| 14 | 610A16 | Head restraint guide (slave) |
| 15 | 613A39 | Backrest assembly |
| 16 | 66801 | Backrest foam pad |
| 17 | - | Backrest heater mat (if equipped) (part of 66801) |
| 18 | 61046 | Armrest filler panel |
| 19 | - | Screw |
| 20 | 66601 | Backrest trim cover |
| 21 | - | Pin-type retainer |
| 22 | - | Pin-type retainers |
| 23 | - | Pin-type retainer |
| 24 | 61349 | Armrest bracket trim cover |
| 25 | 601L60 | Recliner cable |
| 26 | - | Armrest bolt |
| 27 | W712241 | Screws |
| 28 | 61349 | Inboard lower side shield |
| 29 | 61349 | Inboard upper side shield |
| 30 | 62419 | Recliner handle cover |
| 31 | 61349 | Outboard lower side shield |
| 32 | 61349 | Outboard upper side shield |
| 33 | 611B64 | Safety belt retractor |
| 34 | - | Pin-type retainer |
| 35 | - | Heated seat module (if equipped) |
| 36 | 60328 | Heated seat module bracket (if equipped) |
| 37 | 19K315 | Wire harness (if equipped) |
| 38 | - | Screws (2 required) (if equipped) |
| 39 | - | Power fold motor bracket (if equipped) |
| 40 | 613A68 | Power fold motor (if equipped) |
| 41 | - | Safety belt retractor belt and buckle anchor bolt (part of 611B64) |
| 42 | - | Safety belt retractor nut |
- For additional information, refer to the appropriate procedures.
