Antenna Cable - AM/FM: Notes

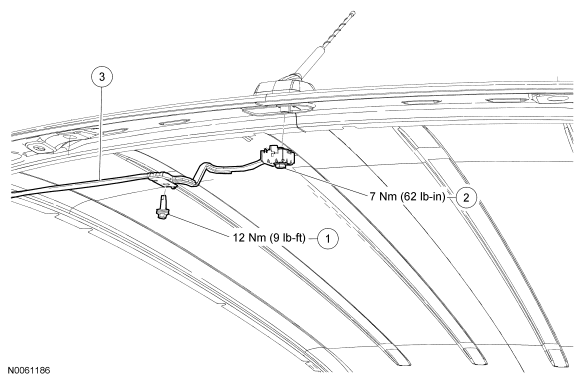

Fig 1: Exploded View Of AM/FM Antenna Cable-To-Antenna With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	AM/FM antenna cable bolt
2	-	AM/FM antenna base bolt (part of 18812)
3	18812	Upper AM/FM antenna cable

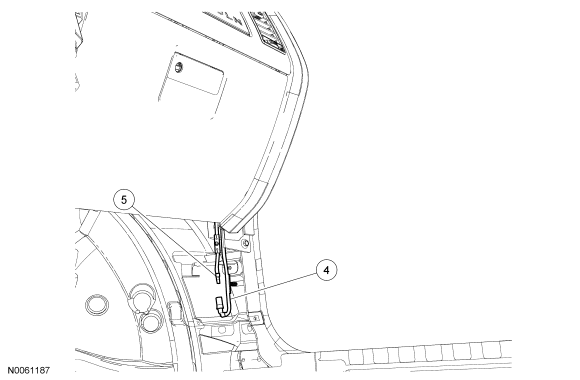

Fig 2: Exploded View Of Upper Antenna Cable-To-Lower Antenna Cable

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
4	18812	Upper AM/FM antenna cable
5	18812	Lower AM/FM antenna cable
