Active Torque Coupling Solenoid Connector

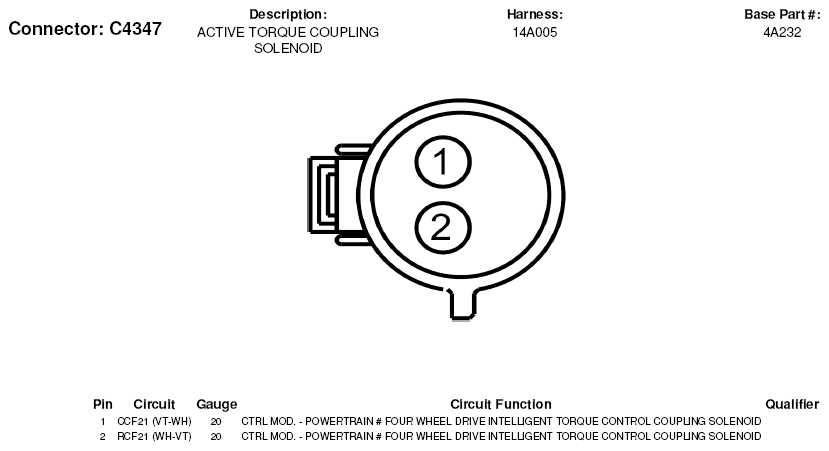

Fig 1: Active Torque Coupling Solenoid Connector End View (C4347)
G05182827Courtesy of FORD MOTOR CO.
