Dual Climate Controlled Seat Connector

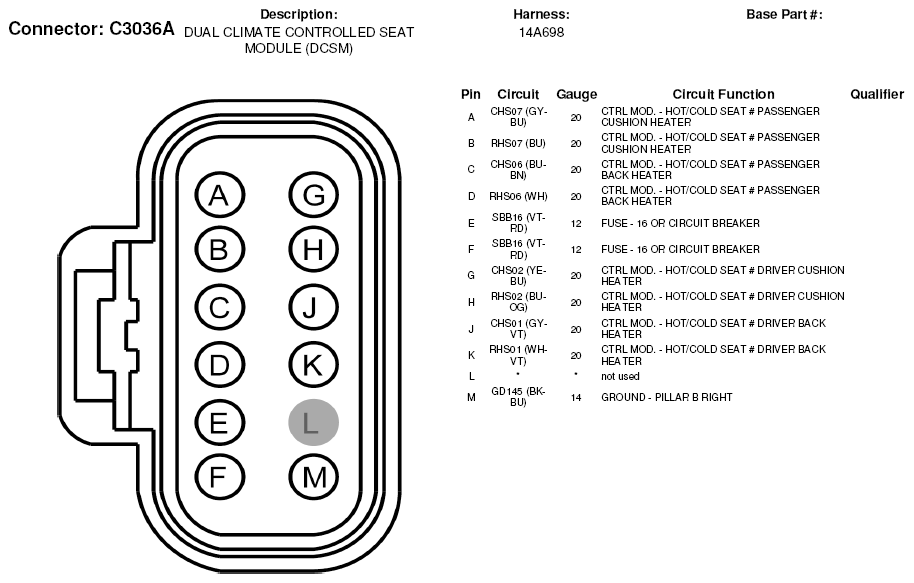

Fig 1: Dual Climate Controlled Seat Connector End View (C3036A)

Courtesy of FORD MOTOR CO.

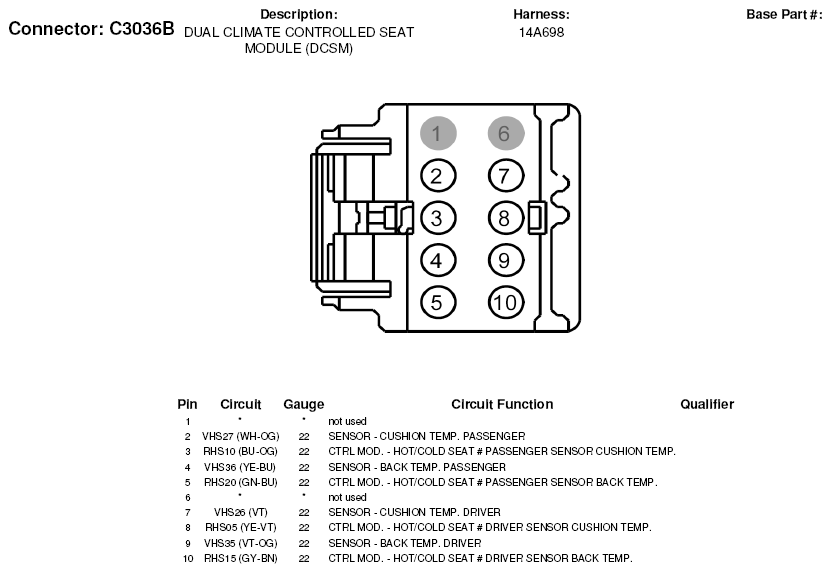

Fig 2: Dual Climate Controlled Seat Connector End View (C3036B)

Courtesy of FORD MOTOR CO.

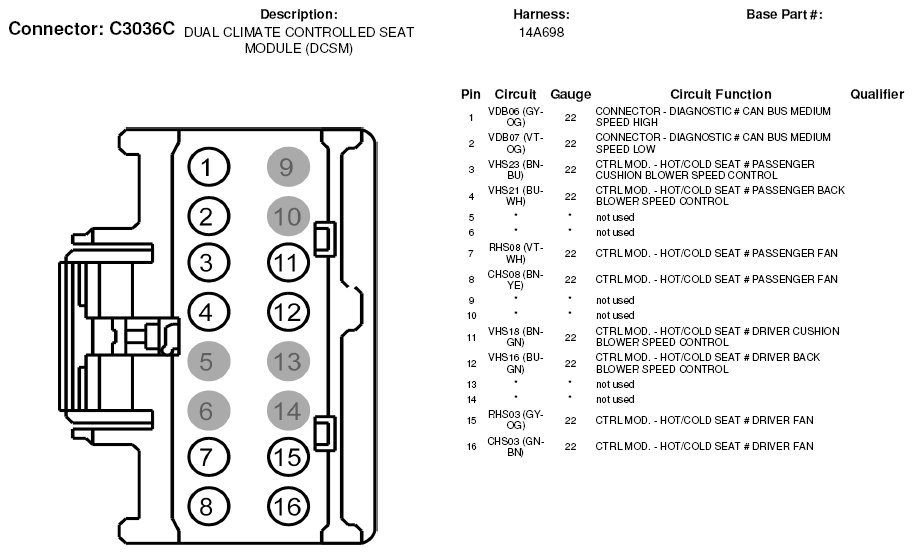

Fig 3: Dual Climate Controlled Seat Connector End View (C3036C)

Courtesy of FORD MOTOR CO.
