EVAP Canister Vent Control Connector
EVAP Canister Vent Control Connector

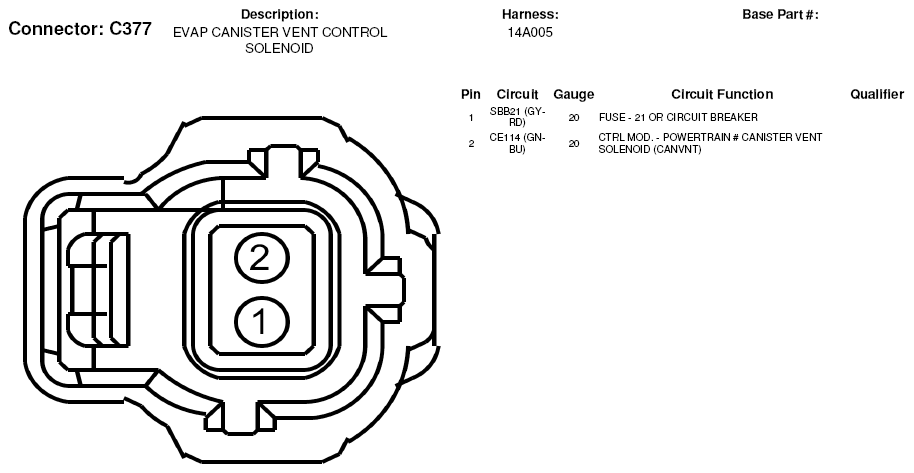

Fig 1: EVAP Canister Vent Control Connector End View (C377)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
