High Mounted Stoplamp Connector
High Mounted Stoplamp Connector

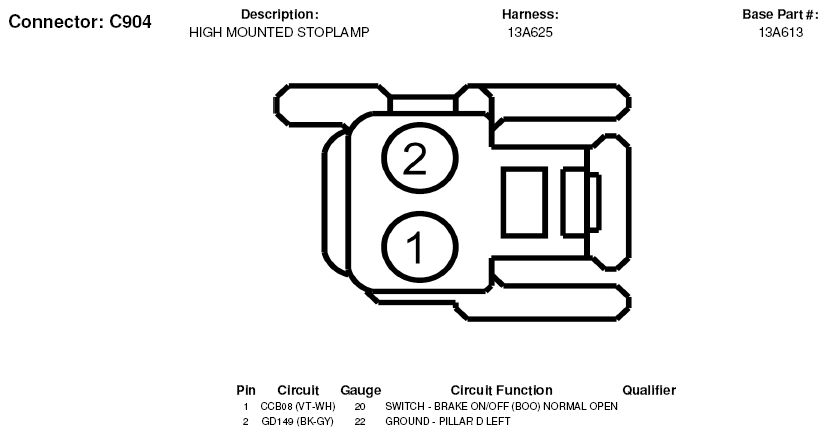

Fig 1: High Mounted Stoplamp Connector End View (C904)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
