Instrument Cluster Connectors
Instrument Cluster Connectors

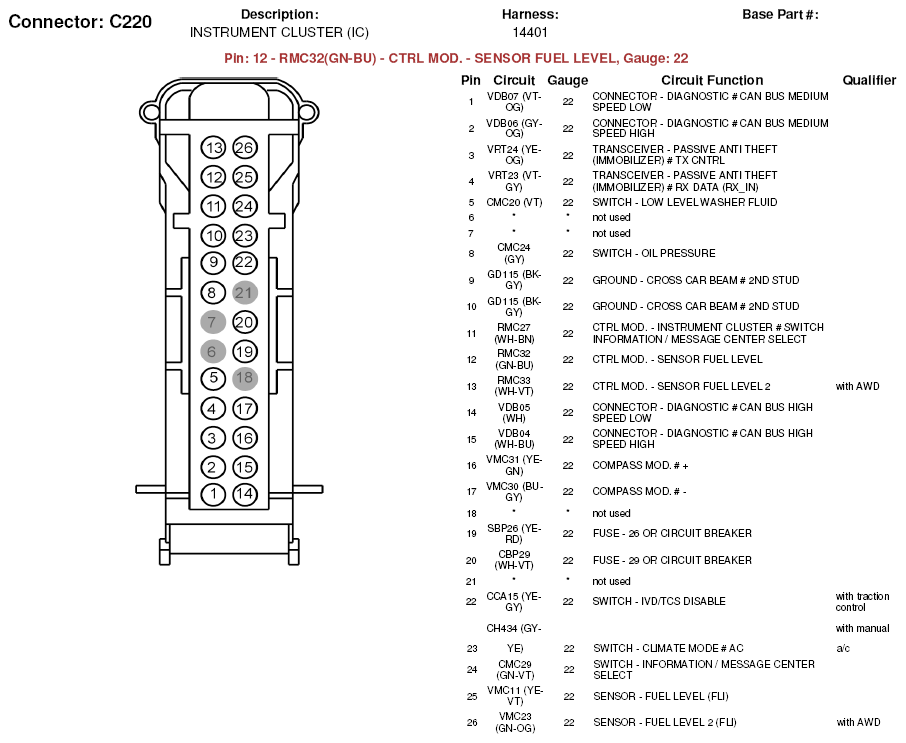

Fig 1: Instrument Cluster Connector End View (C220)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
