Interior Lamps Center Connector
Interior Lamps Center Connector

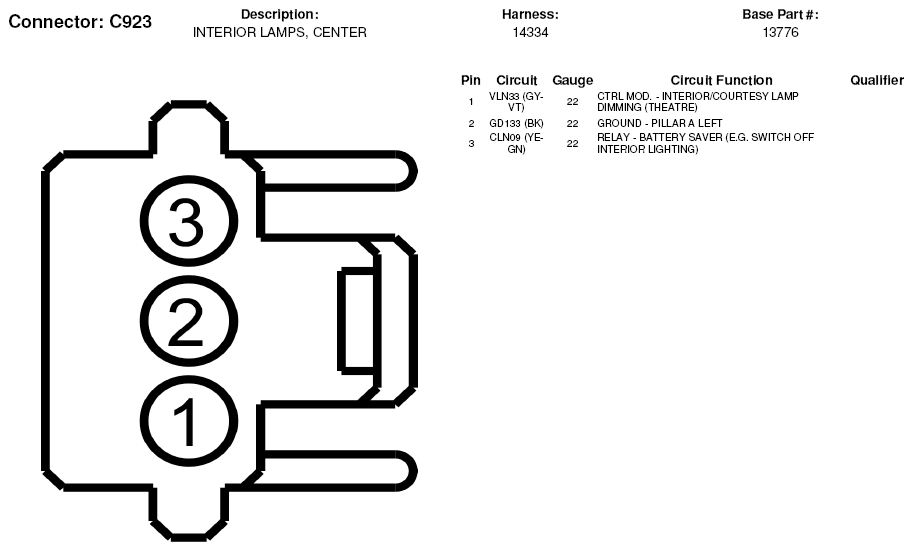

Fig 1: Interior Lamps Center Connector End View (C923)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
