Interior Lamps Connector
Interior Lamps Connector

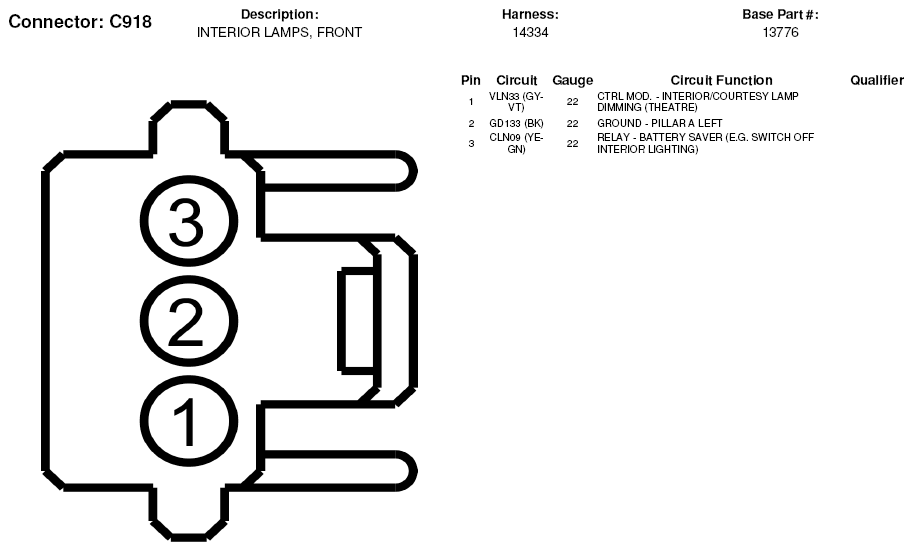

Fig 1: Interior Lamps Connector End View (C918)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
