Liftgate Cinching Motor Connector
Liftgate Cinching Motor Connector

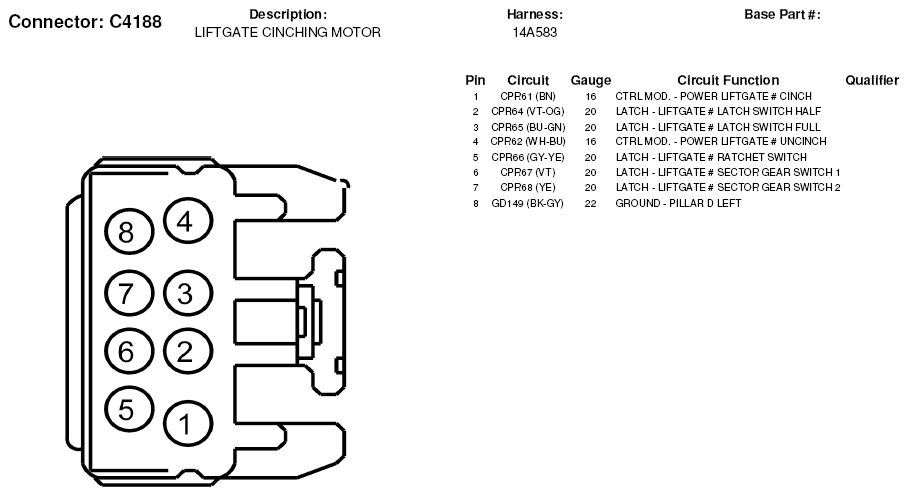

Fig 1: Liftgate Cinching Motor Connector End View (C4188)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
