Passenger Air Bag Module Connectors

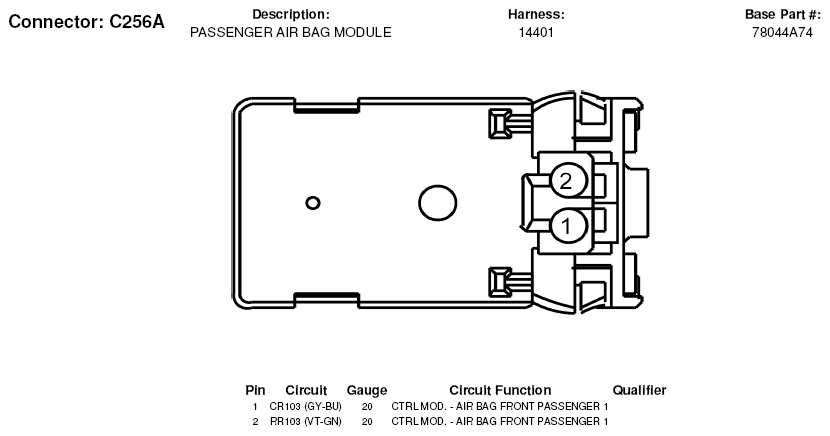

Fig 1: Passenger Air Bag Module Connector End View (C256A)

Courtesy of FORD MOTOR CO.

Fig 2: Passenger Air Bag Module Connector End View (C256B)

Courtesy of FORD MOTOR CO.
