Reversing Lamp Connectors
Reversing Lamp Connectors

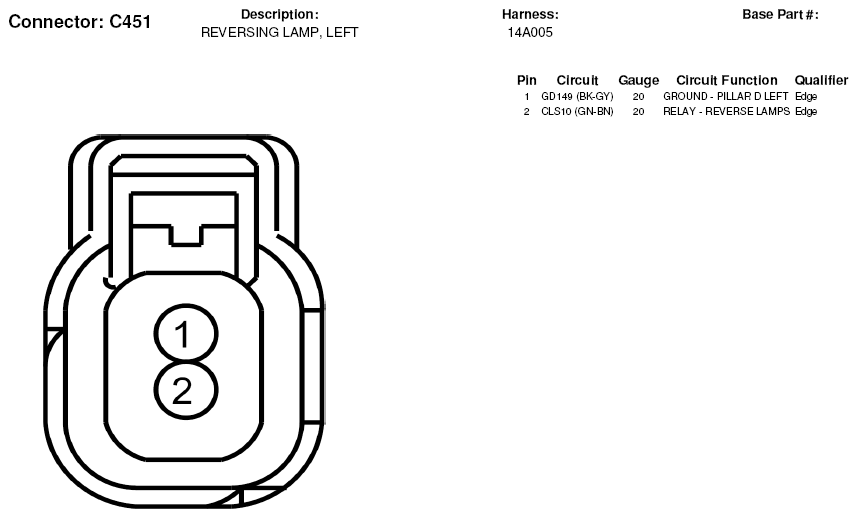

Fig 1: Reversing Lamp Connector End View (C451)
Courtesy of FORD MOTOR CO.

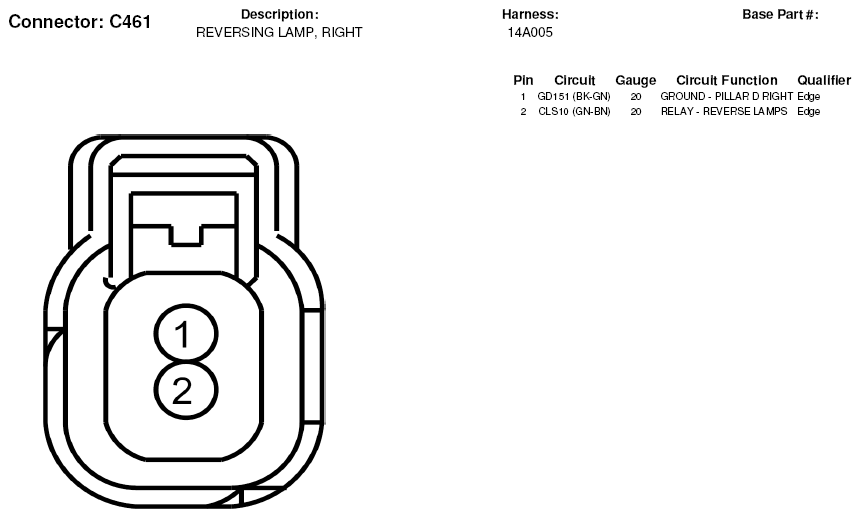

Fig 2: Reversing Lamp Connector End View (C461)
Courtesy of FORD MOTOR CO.

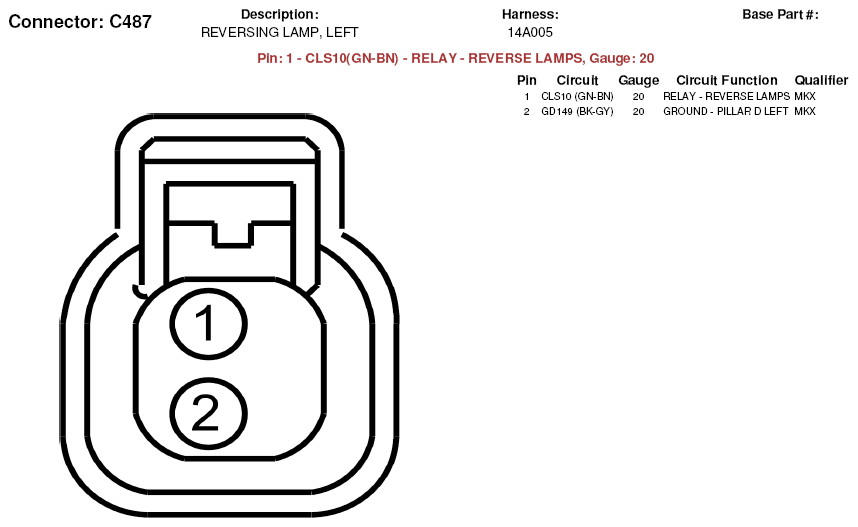

Fig 3: Reversing Lamp Connector End View (C487)
Courtesy of FORD MOTOR CO.

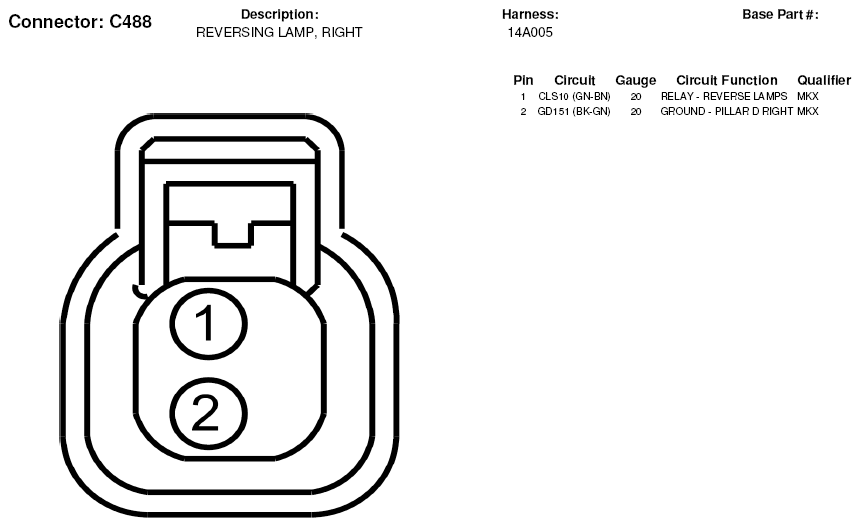

Fig 4: Reversing Lamp Connector End View (C488)
Courtesy of FORD MOTOR CO.
