Side Lamp Connector

Fig 1: Side Lamp Connector End View (C151)
G05182535Courtesy of FORD MOTOR CO.

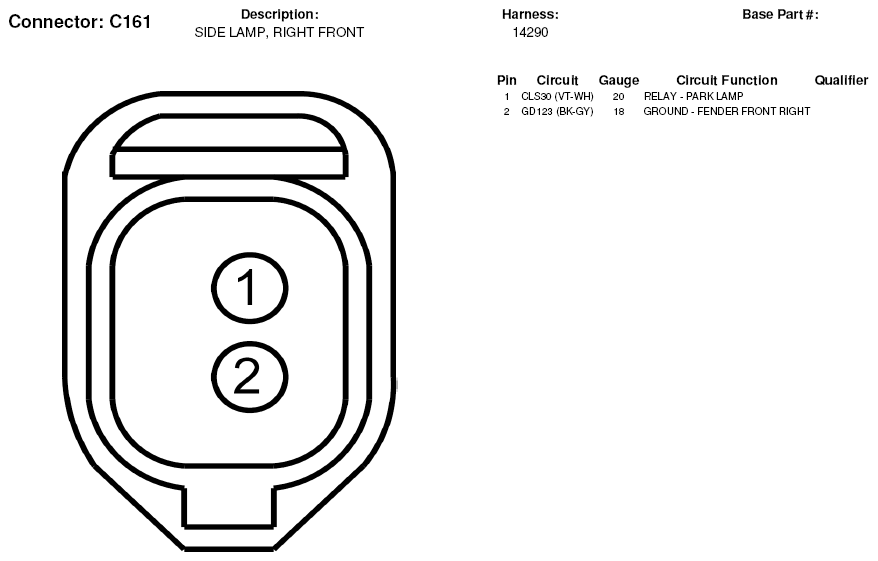

Fig 2: Side Lamp Connector End View (C161)
G05182538Courtesy of FORD MOTOR CO.
