Ford
›
2007
›
Edge SE, AWD
›
Repair and Diagnosis
›
Quick Lookups
›
Wiring Diagrams
›
OEM Connector End Views
›
Connector Views
›
Speaker Connectors
Speaker Connectors

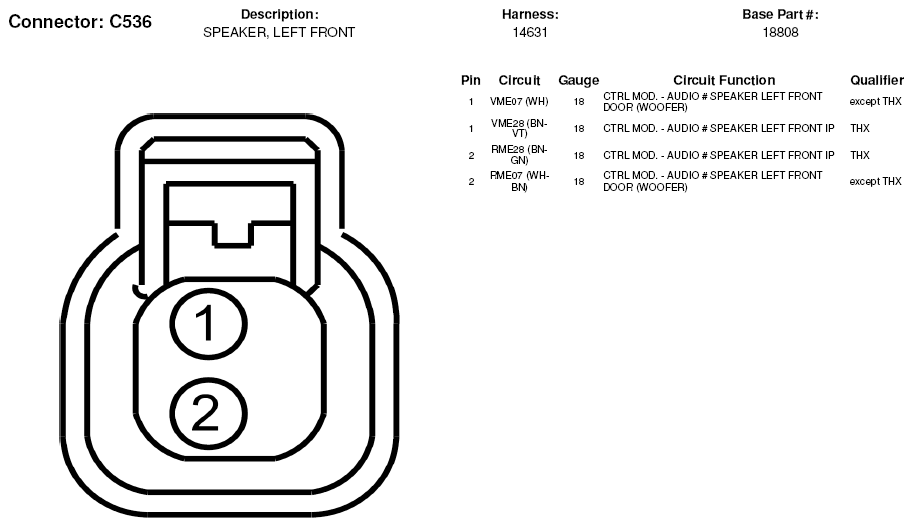

Fig 1: Speaker Connector End View (C536)
Courtesy of FORD MOTOR CO.

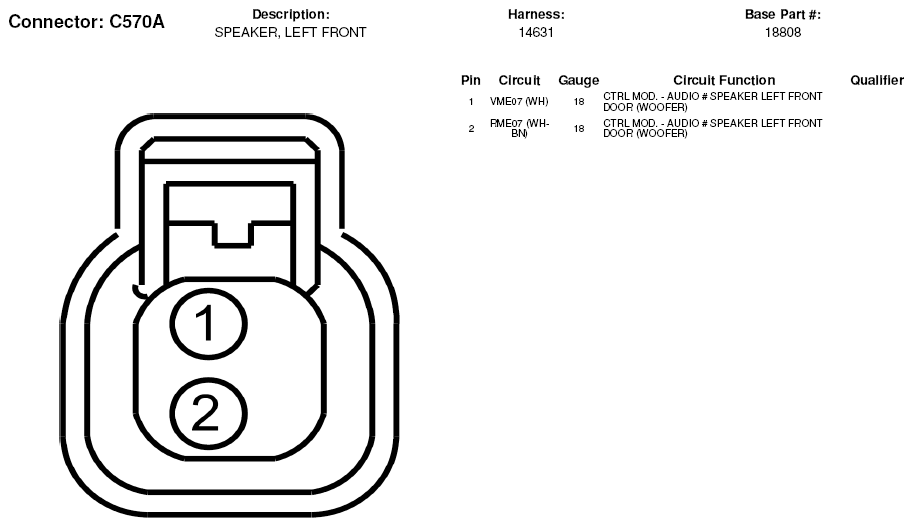

Fig 2: Speaker Connector End View (C570A)
Courtesy of FORD MOTOR CO.

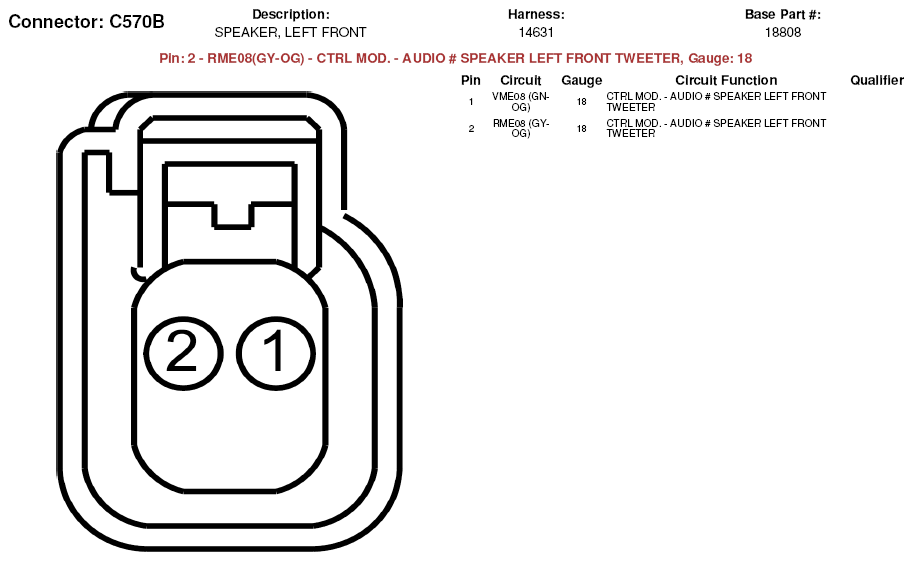

Fig 3: Speaker Connector End View (C570B)
Courtesy of FORD MOTOR CO.
Fig 4: Speaker Connector End View (C612A)
Courtesy of FORD MOTOR CO.

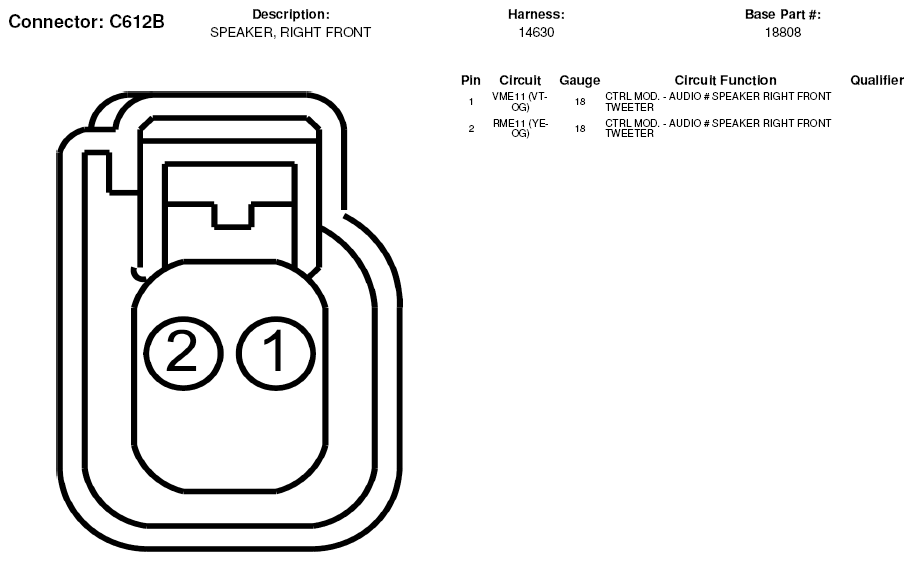

Fig 5: Speaker Connector End View (C612B)
Courtesy of FORD MOTOR CO.

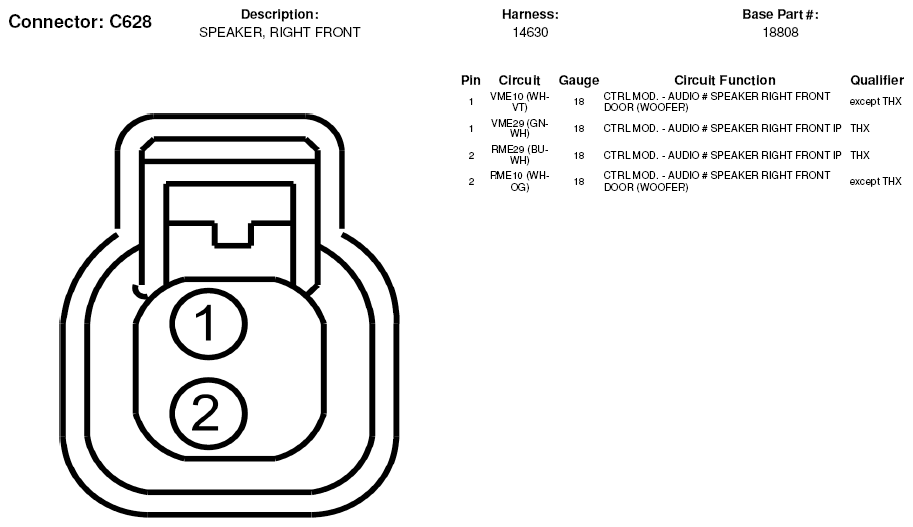

Fig 6: Speaker Connector End View (C628)
Courtesy of FORD MOTOR CO.

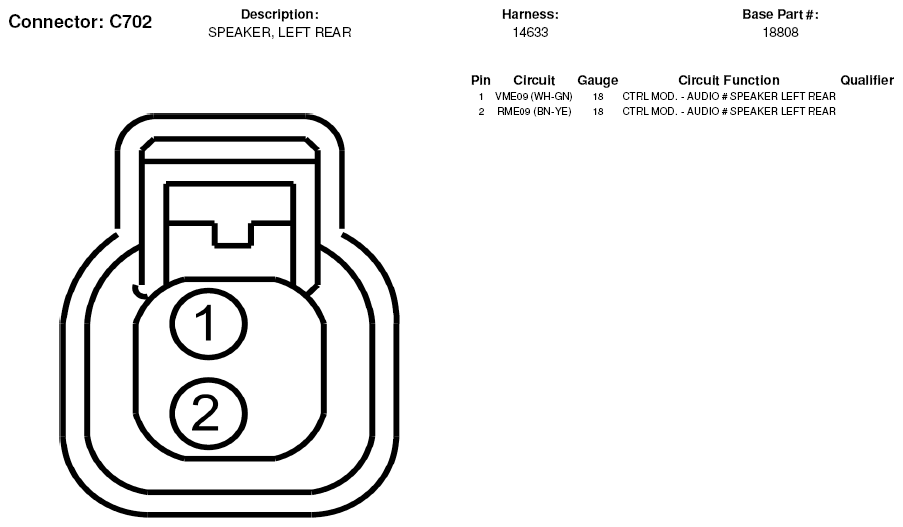

Fig 7: Speaker Connector End View (C702)
Courtesy of FORD MOTOR CO.

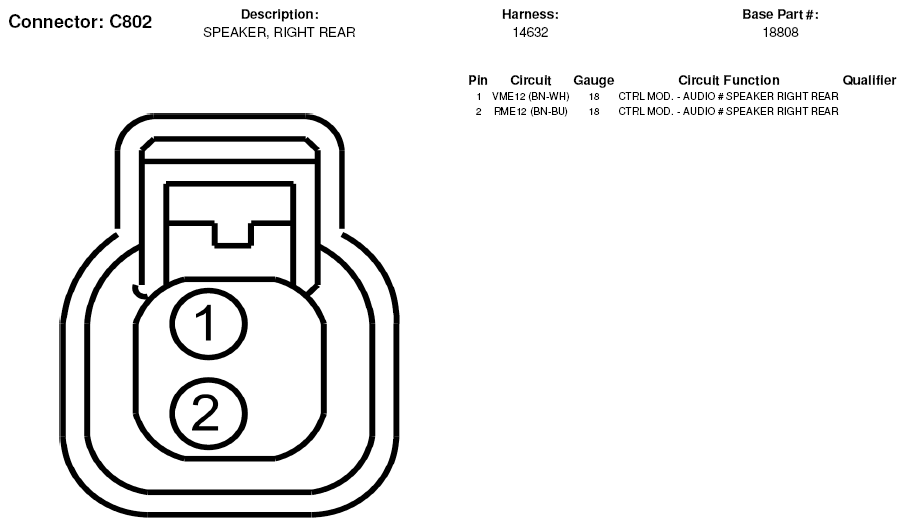

Fig 8: Speaker Connector End View (C802)
Courtesy of FORD MOTOR CO.
