Windshield Washer Pump Motor Connector

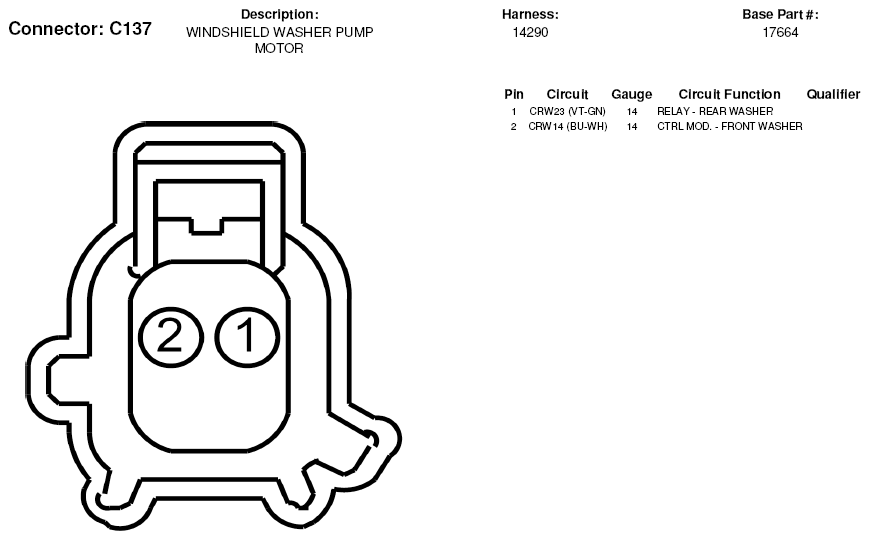

Fig 1: Windshield Washer Pump Motor Connector End View (C137)
G05182528Courtesy of FORD MOTOR CO.
