Wheel Speed Sensor - Front: Notes

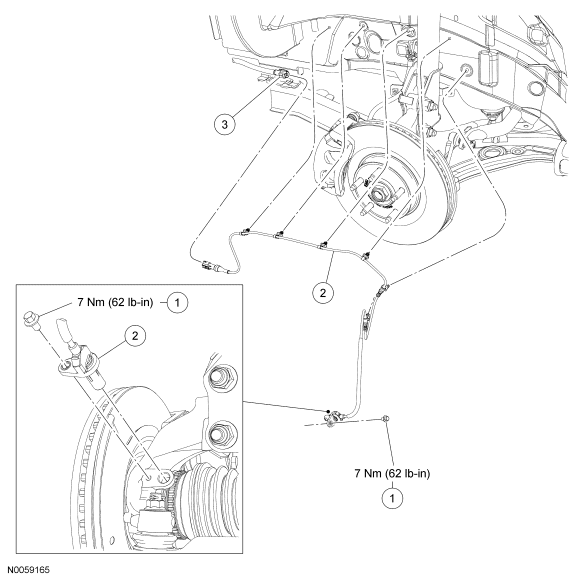

Fig 1: Exploded View Of Front Wheel Speed Sensor With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W500010	Wheel speed sensor bolt
2	2C204 RH/ 2C205 LH	Wheel speed sensor
3	-	Wheel speed sensor electrical connector (part of 14290)
