Climate Controlled Seat Backrest Connector

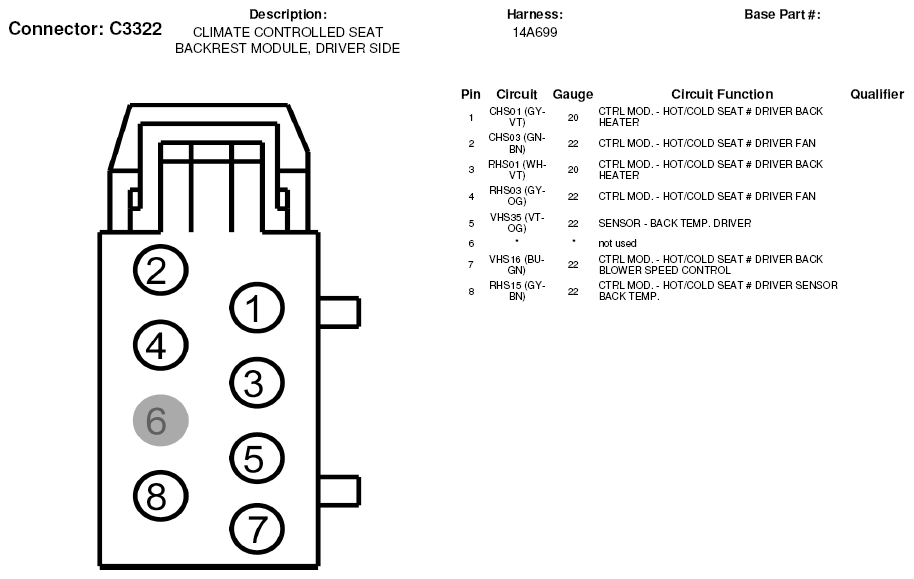

Fig 1: Climate Controlled Seat Backrest Connector End View (C3322)

Courtesy of FORD MOTOR CO.

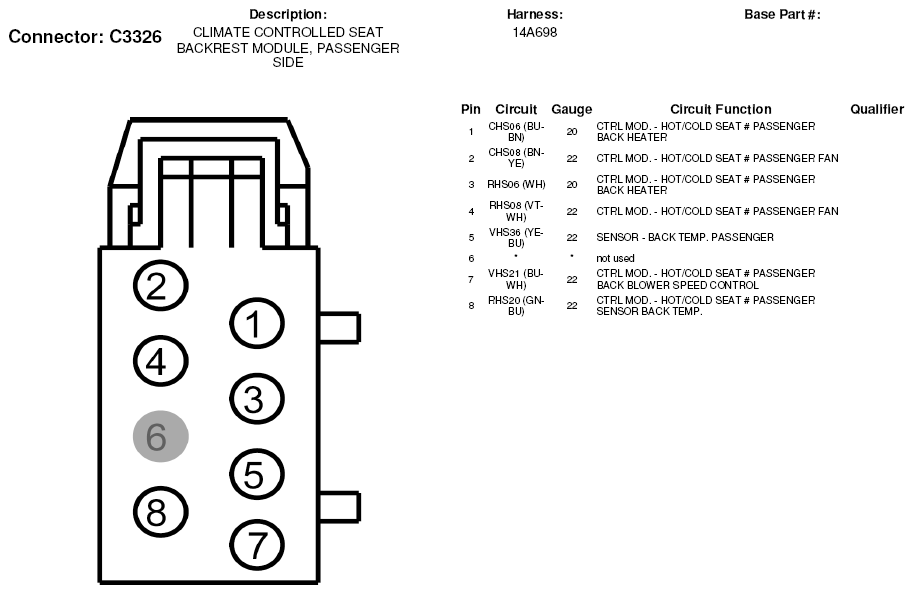

Fig 2: Climate Controlled Seat Backrest Connector End View (C3326)

Courtesy of FORD MOTOR CO.
