Clockspring Connectors

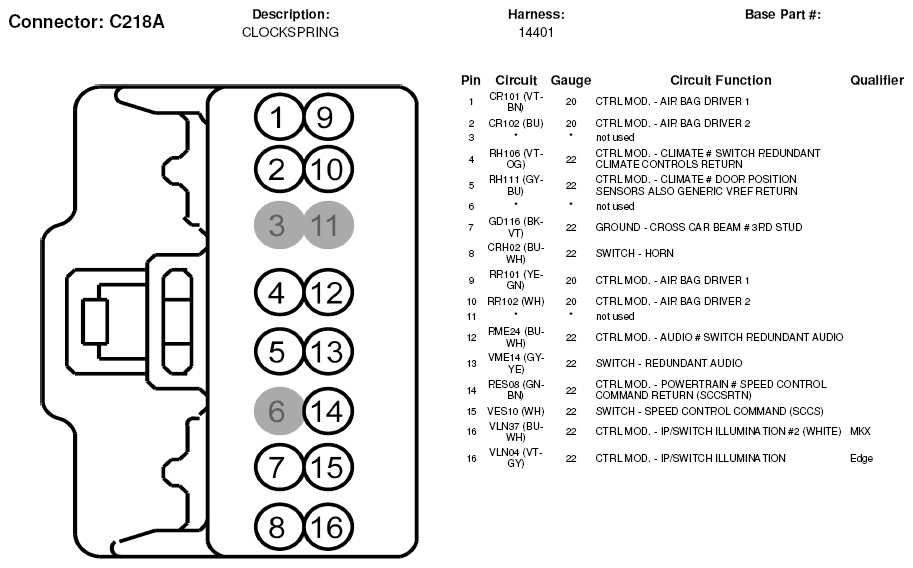

Fig 1: Clockspring Connector End View (C218A)
G05182567Courtesy of FORD MOTOR CO.

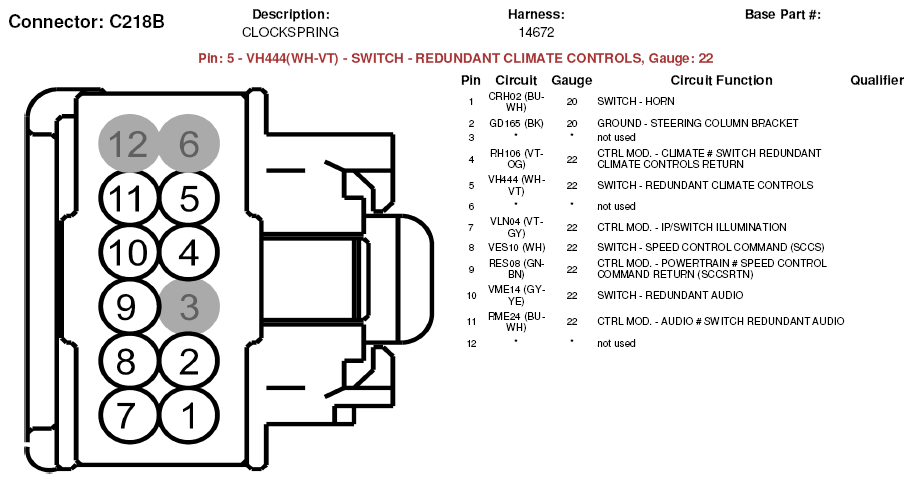

Fig 2: Clockspring Connector End View (C218B)
G05182568Courtesy of FORD MOTOR CO.
