Liftgate Switch / Decklid Switch Connector
Liftgate Switch / Decklid Switch Connector

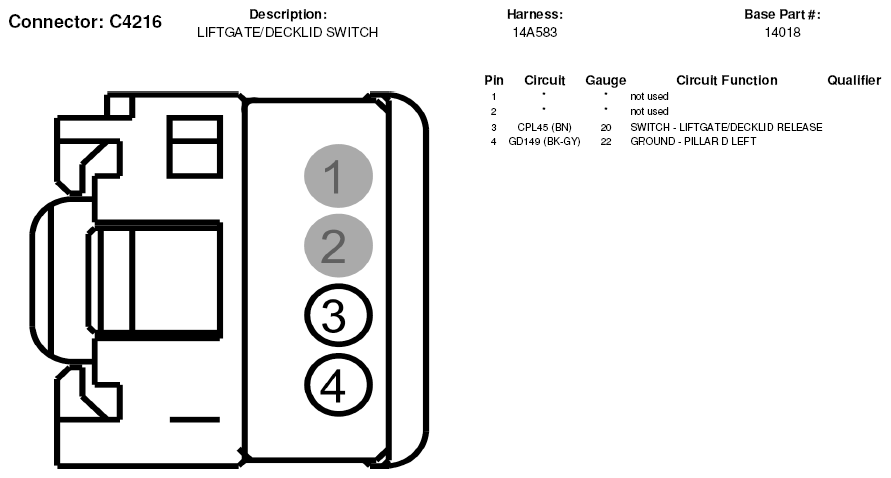

Fig 1: Liftgate Switch / Decklid Switch Connector End View (C4216)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
