Lumbar Motor Connector

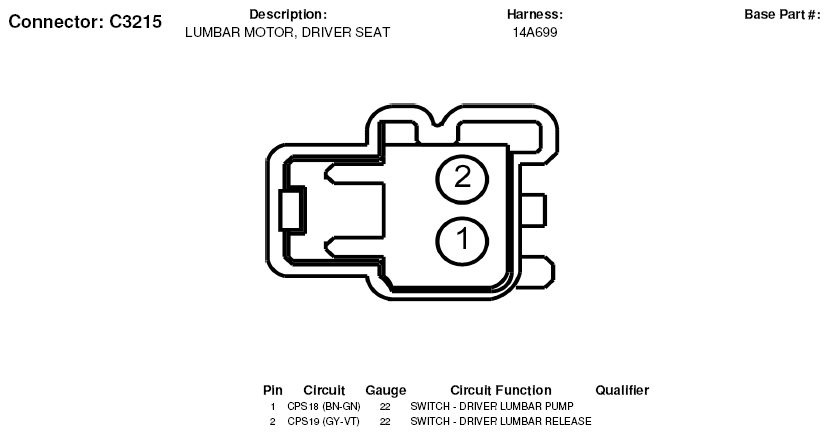

Fig 1: Lumbar Motor Connector End View (C3215)
G05182774Courtesy of FORD MOTOR CO.

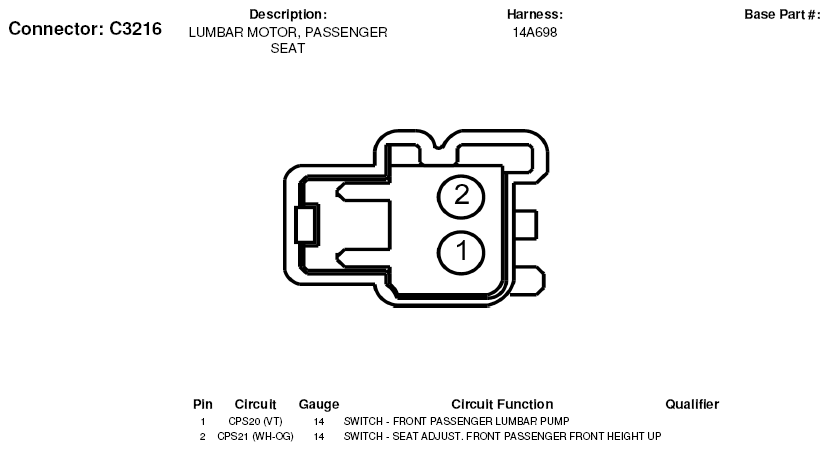

Fig 2: Lumbar Motor Connector End View (C3216)
G05182775Courtesy of FORD MOTOR CO.
