Steering Angle Sensor Module Connector

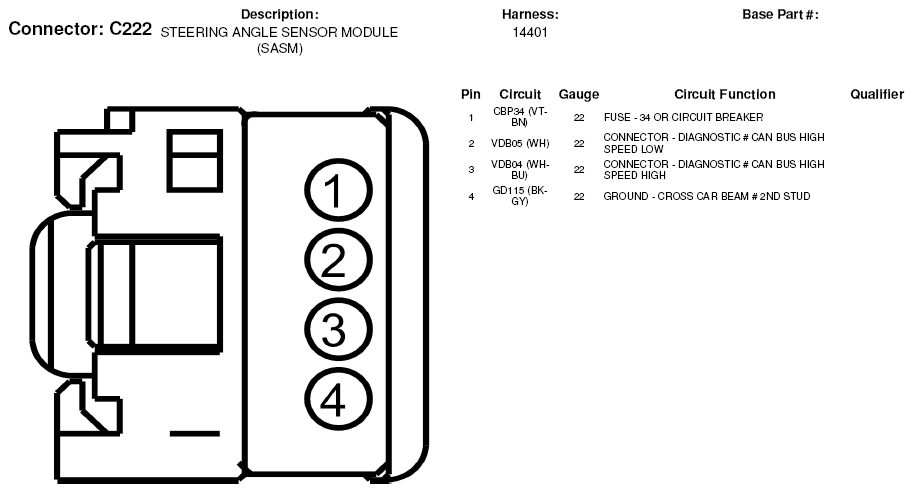

Fig 1: Steering Angle Sensor Module Connector End View (C222)
G05182570Courtesy of FORD MOTOR CO.
