Removal and Installation

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

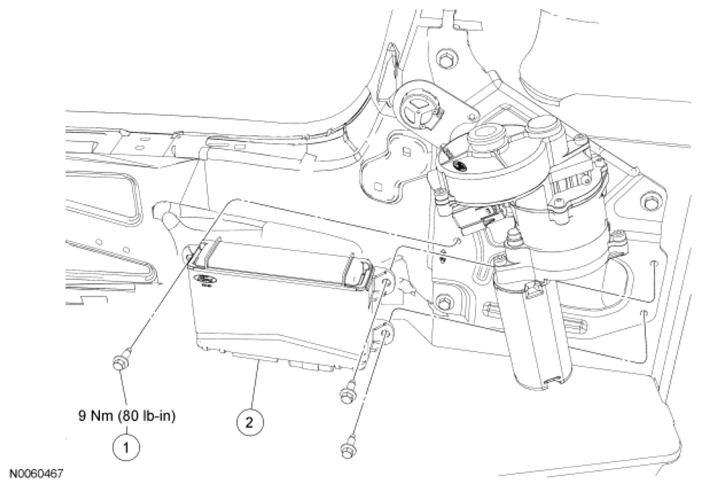

Fig 1: Liftgate/Trunk Module And Retaining Bolt With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	W506013	Liftgate/Trunk Module (LTM) retaining bolt (3 required)
2	404D06	LTM

Remove the power liftgate motor assembly. For additional information, refer to POWER LIFTGATE MOTOR .
Remove the Liftgate/Trunk Module (LTM).
- Disconnect the electrical connectors and remove the 3 retaining bolts.
  - To install, tighten to 9 Nm (80 lb-in).

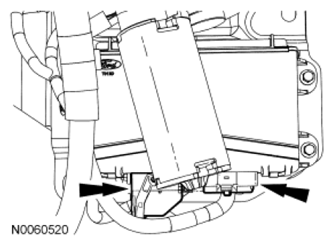

    Fig 2: Locating Electrical Connectors With Retaining Bolts
    Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Initialize the power liftgate. For additional information, refer to POWER LIFTGATE INITIALIZATION .
