Lifting Points
CAUTION:
Under no circumstances should the vehicle be lifted by the front control arms, front cross braces or rear control arms. Severe damage to the vehicle could result.
CAUTION:
Do not allow the lift adapters to contact the steering linkage, suspension arms, front cross braces, stabilizer bar, or to compress the lower suspension arm stabilizer bar insulator. Damage to the suspension, exhaust and steering linkage components may occur if care is not exercised when positioning the lift adapters prior to lifting the vehicle.

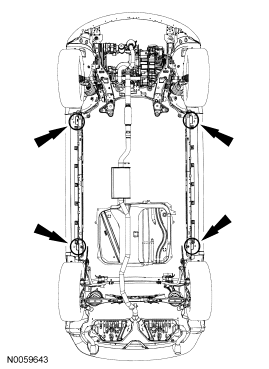

- The lifting points are part of the uni-body structure.
- The front lifting points are identified by an upside down triangle on the rocker panel molding just behind the front wheels. Position the hoist adapters directly under the frame rail with the triangle centered.
- The rear lifting points are identified by an upside down triangle on the rocker panel molding just in front of the rear wheels. Position the hoist adapters directly under the frame rail with the triangle centered.
CAUTION:
Damage to the suspension, exhaust or steering linkage components may occur if care is not exercised when positioning the hoist adapters prior to lifting the vehicle.
