Battery Connectors

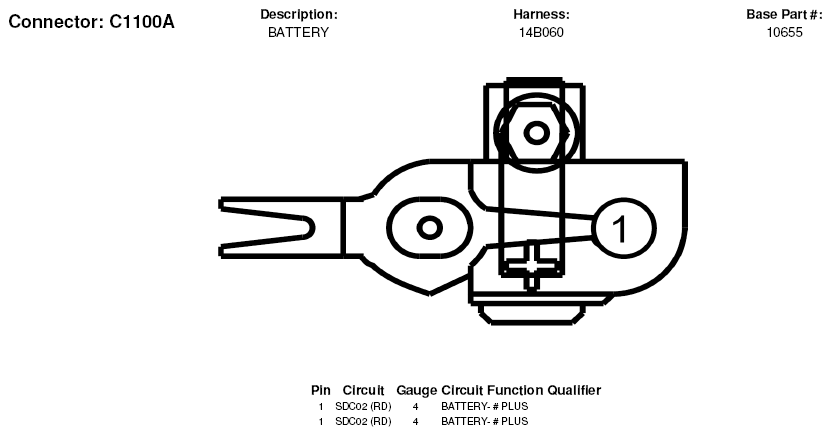

Fig 1: Battery Connector End View (C1100A)
G05182706Courtesy of FORD MOTOR CO.

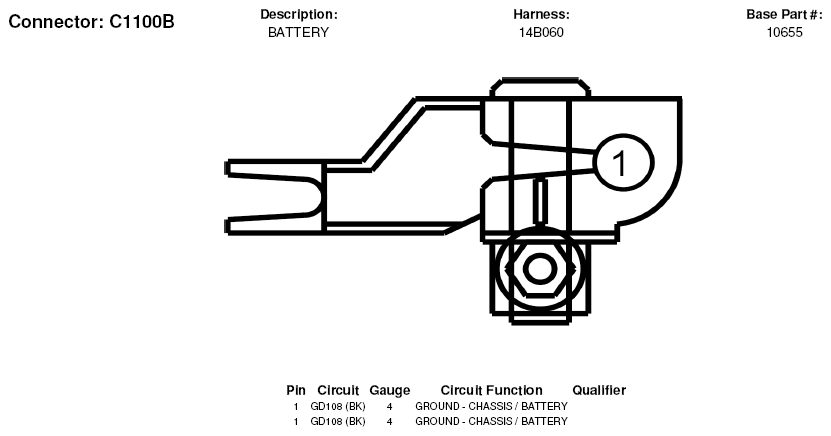

Fig 2: Battery Connector End View (C1100B)
G05182707Courtesy of FORD MOTOR CO.
Fig 3: Battery Connector End View (C1100C)
G05182708Courtesy of FORD MOTOR CO.
