Cargo Lamp Connector
Cargo Lamp Connector

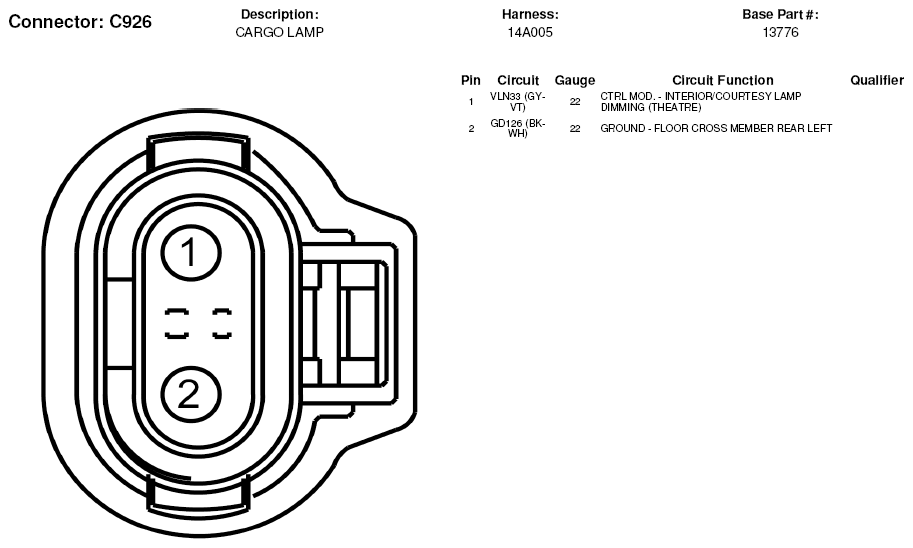

Fig 1: Cargo Lamp Connector End View (C926)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
